Celestron Infiniview LCD Digital Microscope, Black (44360)

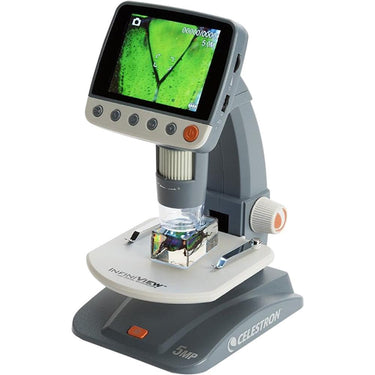

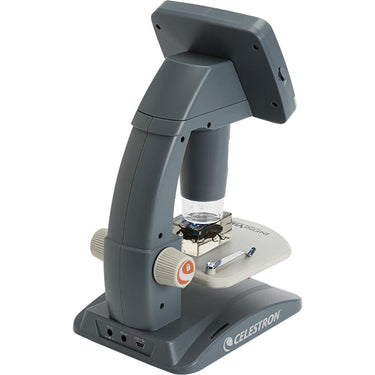

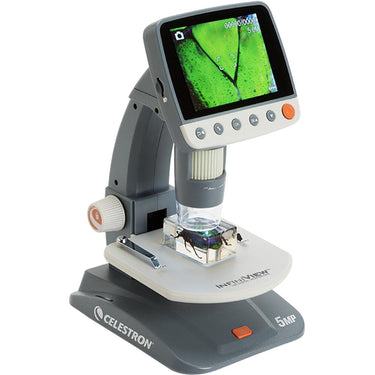

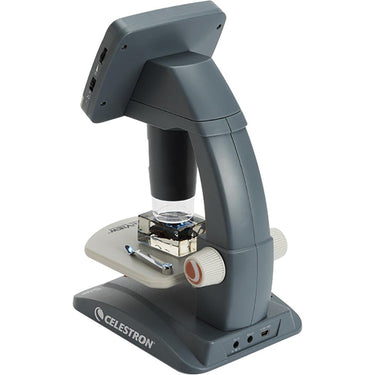

Celestron Infiniview LCD Digital Microscope

The Infiniview LCD Digital Microscope is a versatile tool that's just as useful out in the field as it is in a classroom. Infiniview comes with a 3.5" LCD screen and rechargeable Lithium Ion battery that will last up to 2 hours in the field. You'll be able to capture photos using Infiniview's true 5MP digital camera, and even record short video clips of your specimens. Infiniview includes downloadable Celestron's Capture Pro software for use with your PC, and a TV output so you can view the microscope's display on any screen.

Product Highlights:

Built-in 5MP digital camera captures and saves high-resolution images of your specimens

Full-color 3.5" LCD screen and rechargeable lithium-ion battery for use in the field

High-quality 5-element IR cut glass lens ensures sharper images

4x to 160x magnification using LCD screen, up to 200x using computer monitor

4x digital zoom

Adjustable stage for viewing different sized subjects

TV out for display in a classroom or lab

Downloadable computer software option with measuring feature

Shutter trigger on base to ensure sharp images

Connect via USB to both Windows and Mac systems

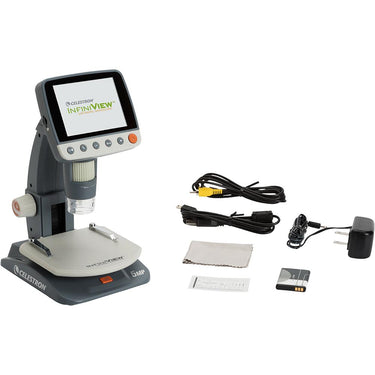

Accessories Included: AV cable, calibration ruler, AC adapter/charger, USB 2.0 cable

Product Features:

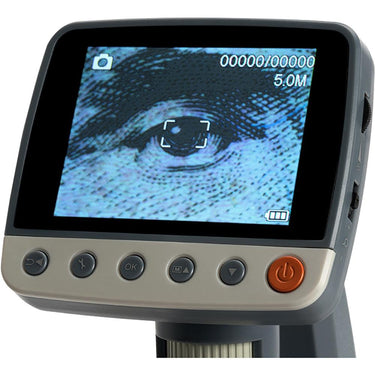

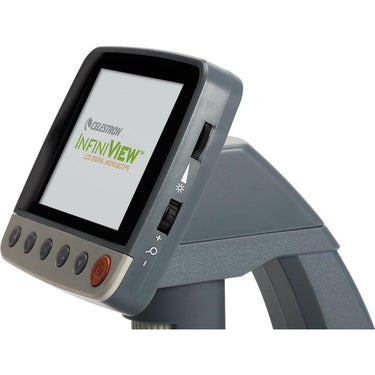

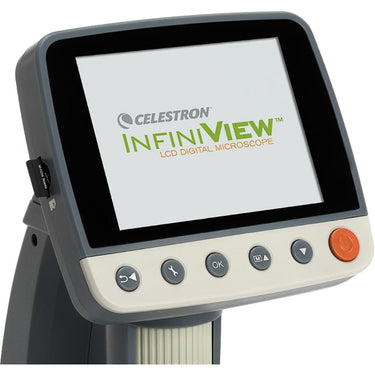

LCD Screen

Full color 3.5" TFT LCD screen with onboard software.

Portability

Rechargeable Lithium-Ion battery lets you to take Infiniview anywhere - you're no longer tethered to a wall outlet or your PC.

Magnification

4x to 160x powers, great for low-power observation of 3D specimens. Adjustable stage makes looking at different sized objects easier.

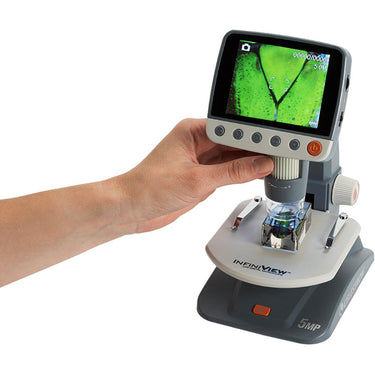

Capture Stills and Videos

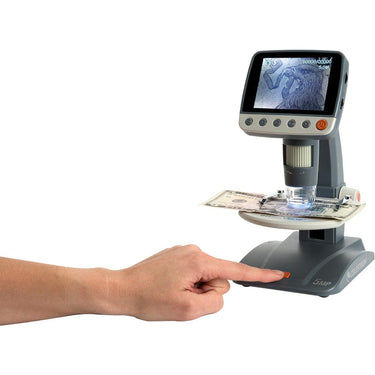

Once you've set up a perfect shot, the Infiniview's built-in 5 Mega Pixel sensor helps you take a vibrant, high resolution photo of what you see on the screen. The shutter trigger is located on the base of the unit, so you can avoid disturbing your shot when pressing the button. Infiniview also records short video of your microscopic discoveries.

TV Output

Use the included AV cable with an external monitor, projector, or TV screen. Perfect for use in a classroom.

Connect to your PC

Infiniview easily connects to both Windows and Mac systems and includes software for both.

Product Specifications:

Type of Microscope: LCD Desktop

Head: Fixed Head, 3.5" TFT LCD Screen

Nosepiece: Clear plastic

Objective(s) Type: Single adjustable internal objective

Focus Type(s):

Course Focus

Fine Focus

Focus Travel (per rotation): TBD

Magnification Range: 20x to 200x (800x with digital zoom)

Illumination Type: Ring Illuminator - 8 LED-Adjustable

Illumination Position(s): Upper-At Nose

Illumination Adjustability Mechanism: Adjustment Wheel - On barrel

Power Source:

Rechargeable Lithium ion battery (1100 mAh)

AC Power Adapter (optional)

Battery Options: Yes

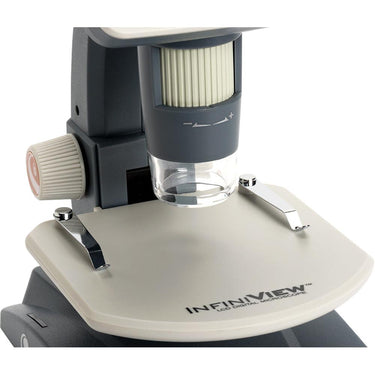

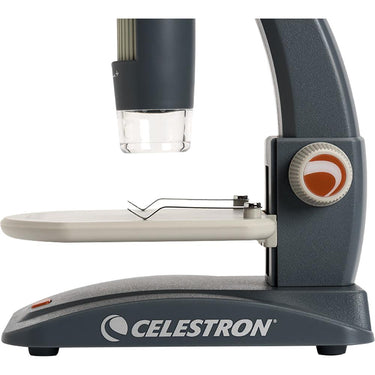

Stage:

Solid base stage attached to microscope

No aperture or bottom illumination

With clips

Eyepiece Type: CMOS Sensor in lieu of eyepiece

Sensor Size: 5MP, 1/3.2"

Pixel Size: 1.75 μm

Screen Type:

Full color 3.5" TRF screen

PC Screen (USB 2.0)

Screen Size: 3.5"

Memory Type: Micro SD Card

Memory Size: Up to 32G

Port(s) In: 5V Power

Port(s) Out:

Micro USB 2.0

Video/ TV out

AC Adapter:

Input: 100-240V 50/60Hz, 0.2A

Output: 5V - 1A

Still Image Capture Resolution:

2592 x 1944

2112 x 1188

1538 x 864

640 x 480

Video Resolution:

1920 x 1080

1280 x 720

640 x 480

Max frame rate 30fps

Shutter Trigger Position: On Stage and in software

Shutter Speed: 1 sec. to 1/1000 sec.

Software: Celestron Portable Capture Pro

Software Compatibility:

Windows: 10/8/XP

Mac: OSX 10.4 - 10.14

Microscope Dimensions: 149mm x 104mm x 227mm (5.8" x 4.1" x 8.9")

Microscope Weight: 56 oz (1.6 kg)
