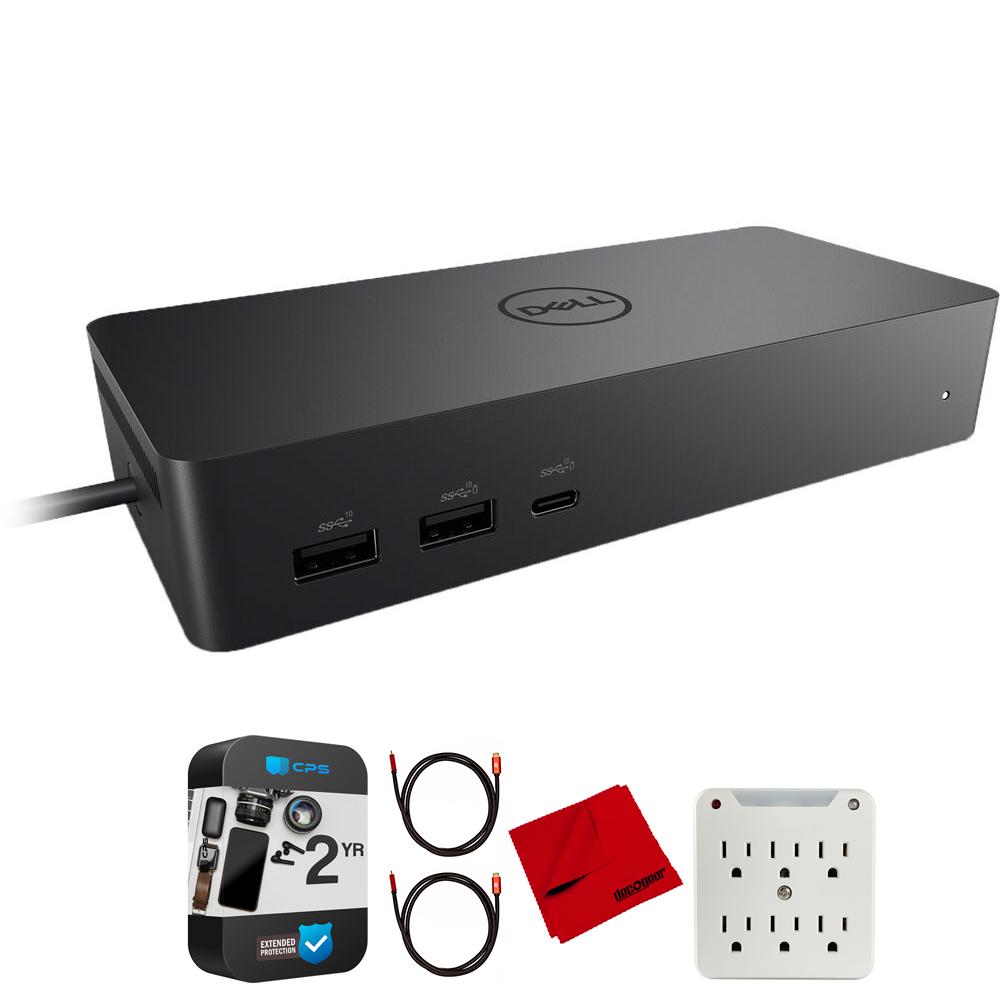

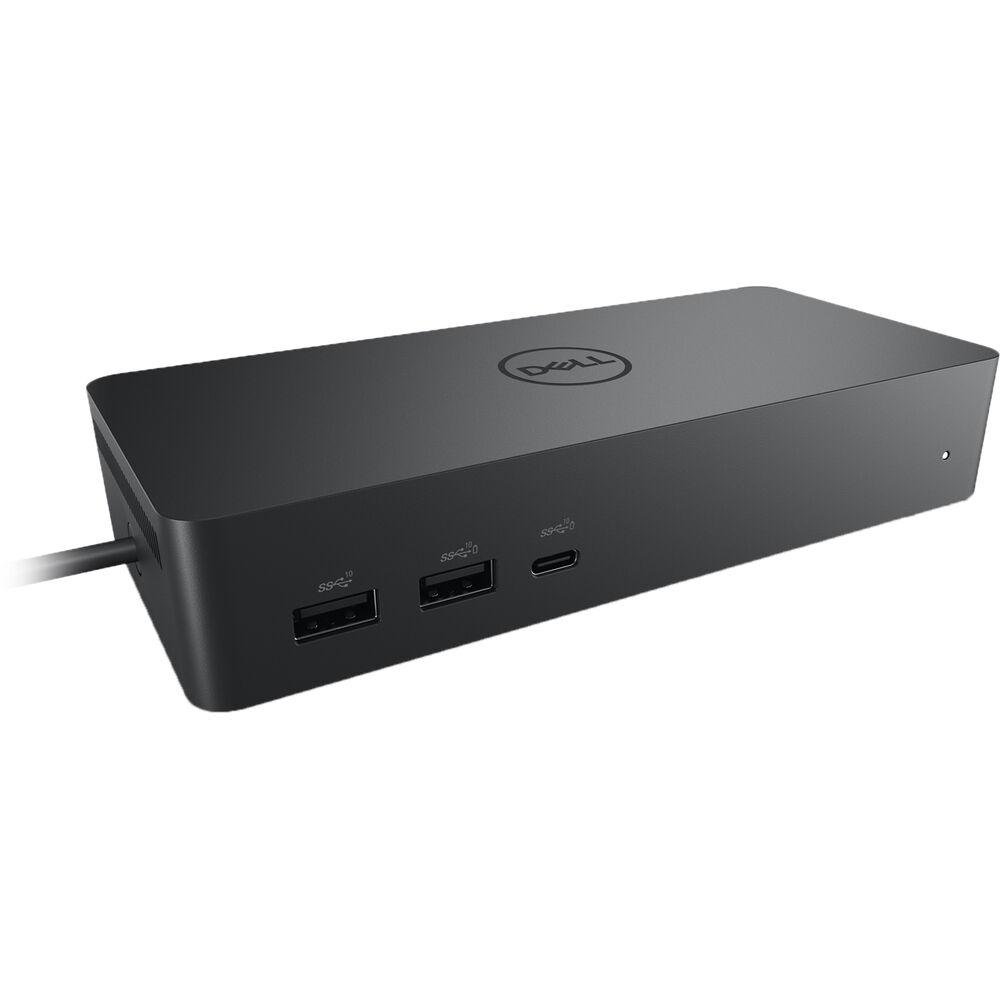

Dell Universal Dock UD22
Experience the ultimate universal dock, equipped with 10 ports, for any USB-C notebook.
Product Highlights:
Power Delivery (Power Provided)
96 Watt
Video Resolution
5K-60 Hz (Single Display)
4K-60 Hz (Quad Display)
Interfaces
2 x display / video - DisplayPort - 20 pin DisplayPort (1.2)
1 x display / video - HDMI
1 x USB-C 3.2 Gen 2/DisplayPort
1 x USB 3.2 Gen 2 with PowerShare
3 x USB 3.2 Gen 2
1 x USB-C with PowerShare
1 x network - RJ-45
OS Required
Windows 10
Windows 11
Ubuntu 20.04 or later
Apple macOS 12.21 or later
Google Chrome OS 100 or laterShow More
Dell Universal Dock UD22
Experience the ultimate universal dock, equipped with 10 ports, for any USB-C notebook.
Product Highlights:
Power Delivery (Power Provided)
96 Watt
Video Resolution
5K-60 Hz (Single Display)
4K-60 Hz (Quad Display)
Interfaces
2 x display / video - DisplayPort - 20 pin DisplayPort (1.2)
1 x display / video - HDMI
1 x USB-C 3.2 Gen 2/DisplayPort
1 x USB 3.2 Gen 2 with PowerShare
3 x USB 3.2 Gen 2
1 x USB-C with PowerShare
1 x network - RJ-45
OS Required
Windows 10
Windows 11
Ubuntu 20.04 or later
Apple macOS 12.21 or later
Google Chrome OS 100 or later
Cables
1 x USB-C cable - 2.6 ft
Features / Data Link Protocol
Gigabit Ethernet
Product Description:
Features and Designs

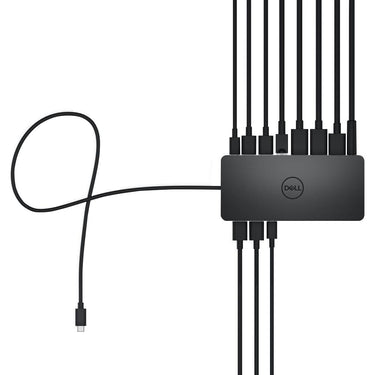

Universal Connectivity
Consistent experience
Connect to any USB-C notebook, regardless of the manufacturer, and run any operating system.

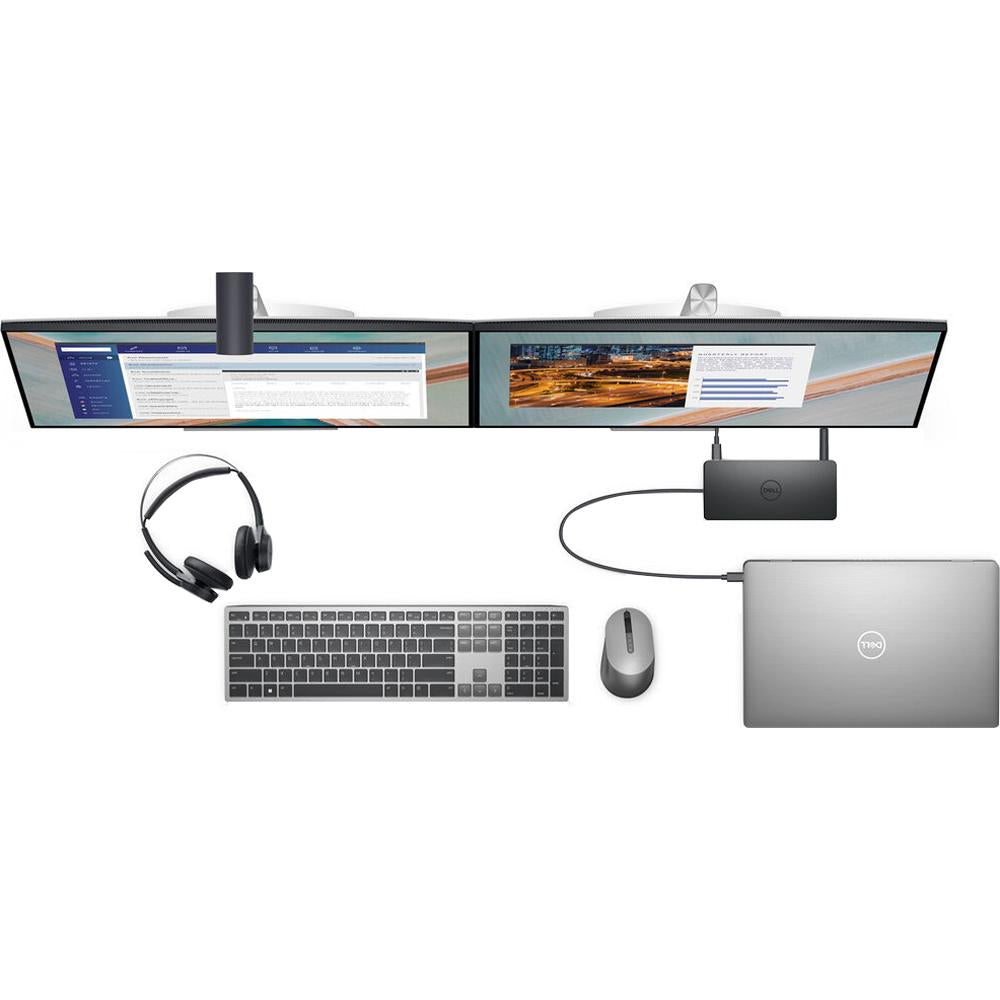

Multiple monitor support
Enhance your coworking spaces with consistent display support across different systems.
High power delivery
Achieve a fast-charging experience with up to 96W power delivery for any USB-C notebook.
Next-level productivity
Enhanced display support
Maximize productivity with the highest number of displays supported on a universal dock, enabling connection of up to four 4K monitors via DisplayLink drivers.
Multiple ports
With the highest number of ports on a universal dock, create a productive work station with increased flexibility.
Seamless experience and supportive management
Faster, easier deployment
Connect your laptop and get started quickly even when the DisplayLink driver is not installed, thanks to the additional support for DP Alt mode.
Hoteling made convenient
Enhance the shared workspace experience further with DisplayLink's layout provisioning feature that enables preconfigured display layout automatically for the users.
Extended warranty
Dell Docks now have their own service tags, along with a 3 to 5 year warranty option for the best support, management and upgradeability possible.

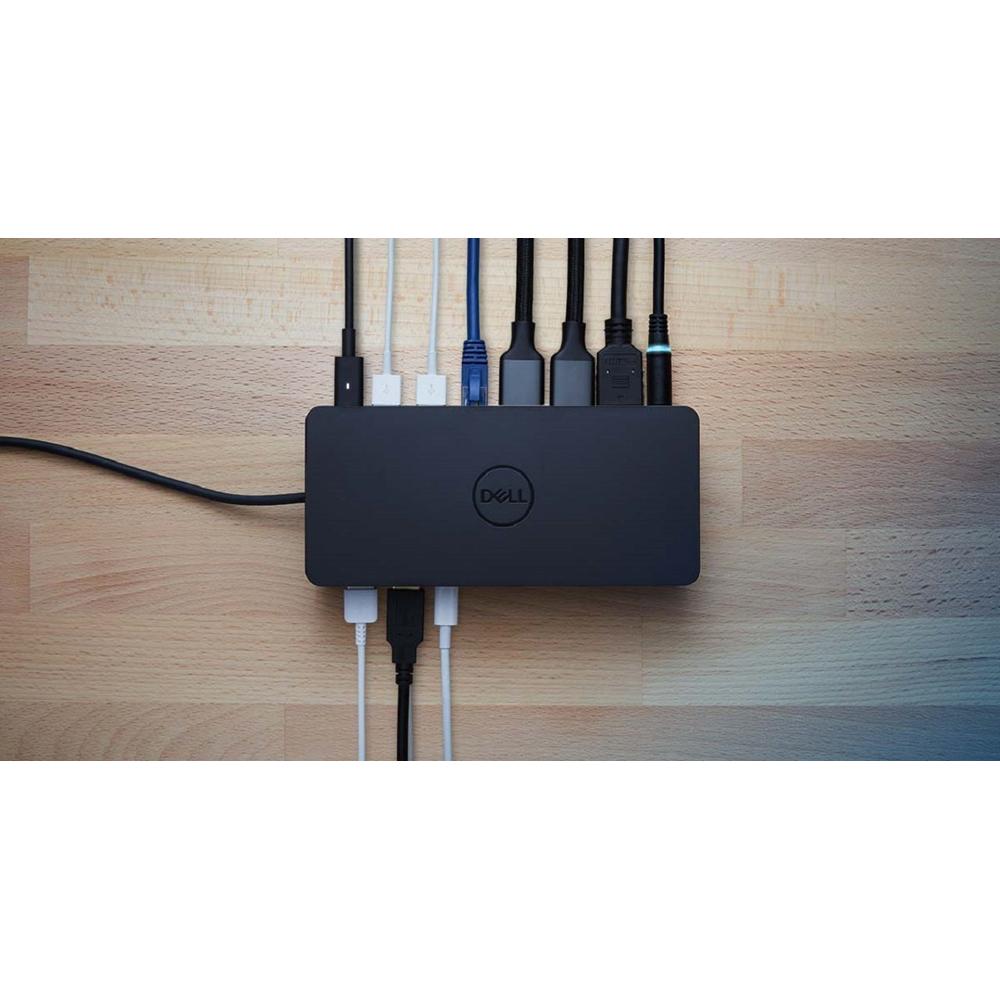

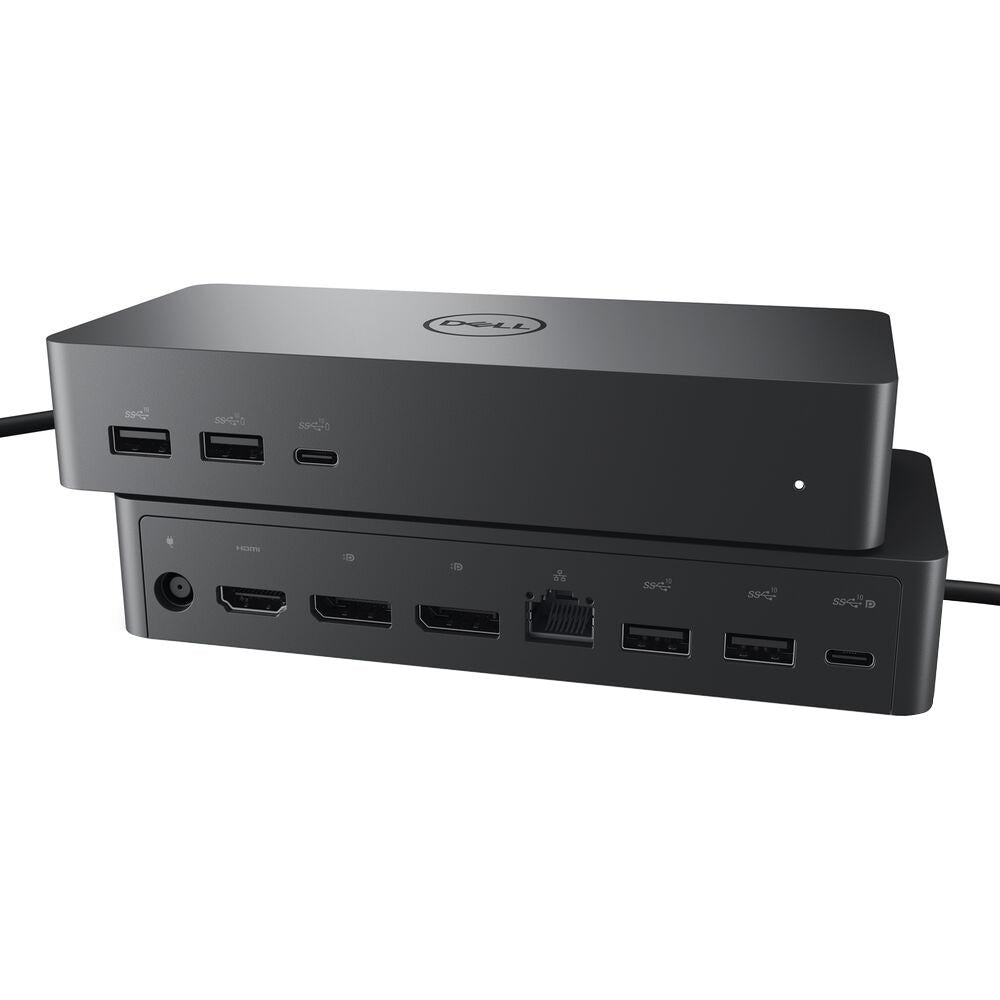

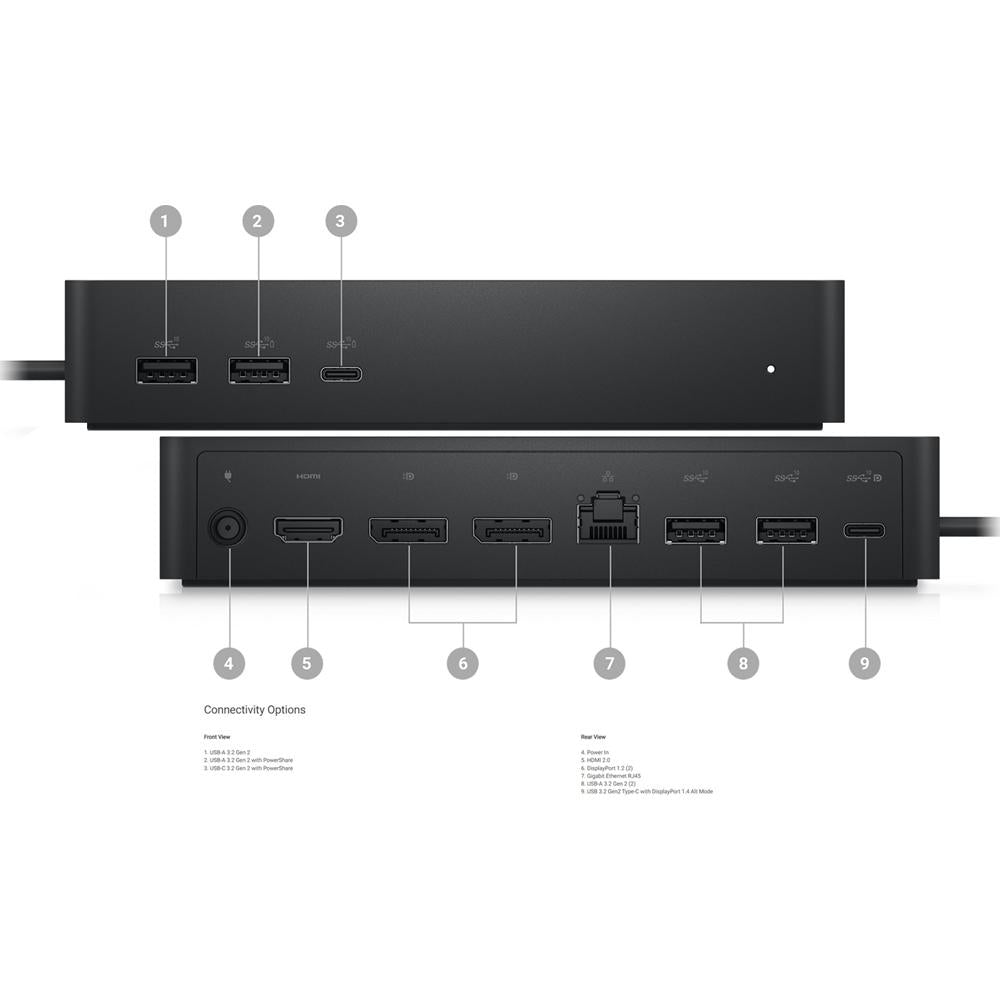

Connectivity Options

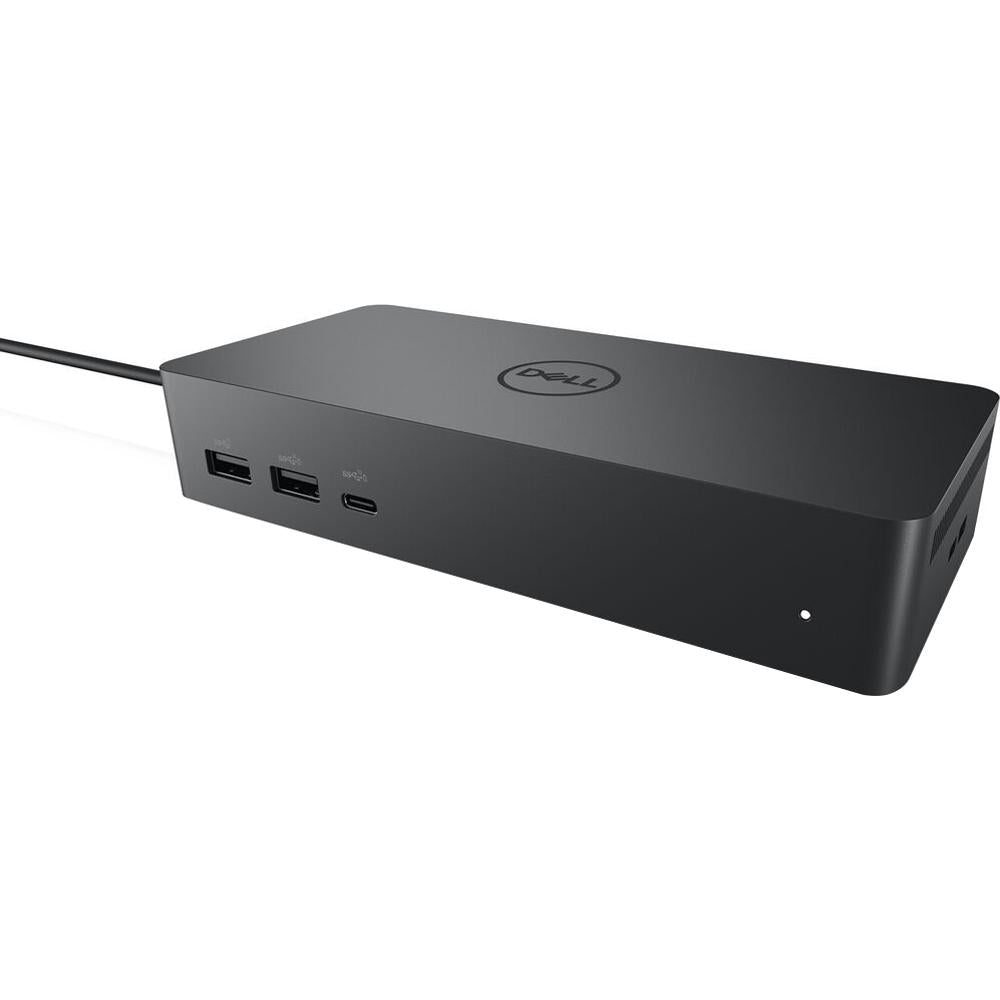

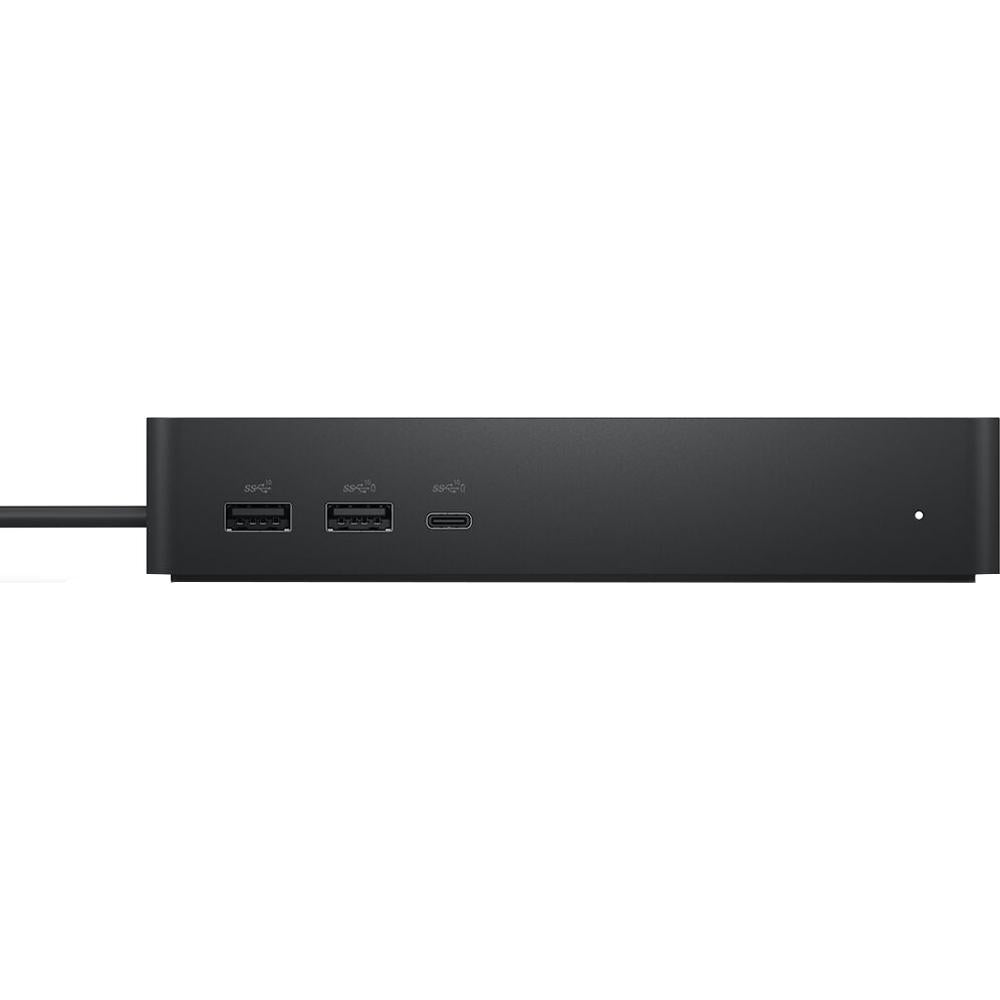

Front View:
1. USB-A 3.2 Gen 2
2. USB-A 3.2 Gen 2 with PowerShare
3. USB-C 3.2 Gen 2 with PowerShare

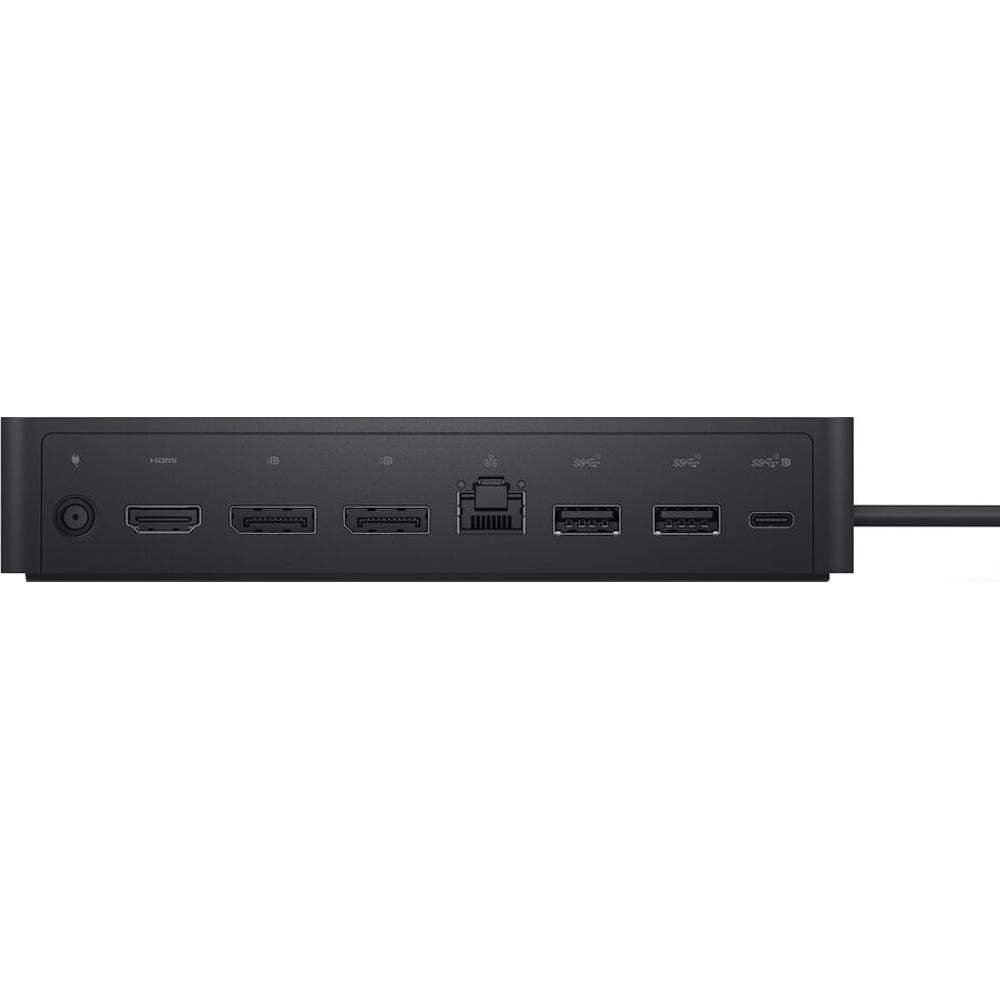

Rear View
4. Power In
5. HDMI 2.0
6. DisplayPort 1.2 (2)
7. Gigabit Ethernet RJ45
8. USB-A 3.2 Gen 2 (2)
9. USB 3.2 Gen2 Type-C with DisplayPort 1.4 Alt Mode
All of the dock support, none of the hassle
When you choose Premium Support for docking stations you get 24x7 support for configuration, interoperability, and software support. If needed, get next business day Advanced Exchange Service docking station replacement.
Advanced Exchange Service
Your dock comes with a 3-year Advanced Exchange Service so that if a replacement becomes necessary, it will be shipped to you the next business day during your 3-year Limited Hardware Warranty.
Product Specifications:
General
Power Provided: 96 Watt
Max Resolution Details: 5K - 60 Hz (Single Display), 4K - 60 Hz (Quad Display)
Cables Included: 1 x USB-C cable - 2.6 ft
OS Required: Windows 10, Windows 11, Ubuntu 20.04 or later, Apple macOS 12.21 or later, Google Chrome OS 100 or later
Video
Max Resolution Details: 5K-60 Hz (Single Display), 4K-60 Hz (Quad Display)
Networking
Data Link Protocol
Gigabit Ethernet
Expansion / Connectivity
Interfaces
2 x display / video - DisplayPort - 20 pin DisplayPort (1.2)
1 x display / video - HDMI
1 x USB-C 3.2 Gen 2/DisplayPort
1 x USB 3.2 Gen 2 with PowerShare
3 x USB 3.2 Gen 2
1 x USB-C with PowerShare
1 x network - RJ-45
Miscellaneous
Cables Included: 1 x USB-C cable - 2.6 ft
Features: Security lock slot (cable lock sold separately), wake on LAN, 3 LED indicators, MAC address pass-through, wireless vPro, 96W power delivery, High Bit Rate 3 (HBR3), High Bit Rate 2 (HBR2), Kernel Direct Memory Access (DMA) protection
Security Slot Type: Kensington nano security slot / Kensington security slot
Power
Power Device: Power adapte
Power Provided: 96 Watt
System Requirements
OS Required: Windows 10, Windows 11, Ubuntu 20.04 or later, Apple macOS 12.21 or later, Google Chrome OS 100 or later
Manufacturer Warranty
Bundled Services: 3 years Advanced Exchange Service and Limited Hardware Warranty
Dimensions and Weight
Width: 3 in
Depth: 6.5 in
Height: 1.3 in
Weight: 14.67 oz
