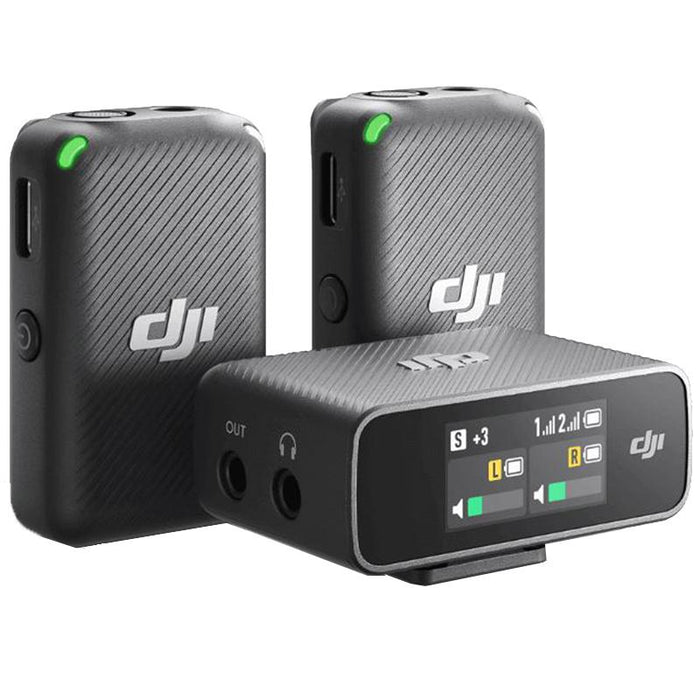

DJI Mic Wireless Microphone System and Audio Recorder

DJI Mic - Elevate Your Audio

With DJI Mic, you can now easily record audio that matches the quality of your videos. It's ideal for creators looking to gain an edge and elevate their content to the next level. It delivers exceptional sound quality and dual-channel recording at distances of up to 250 m. Switch on, connect, and record crystal-clear audio on the go.

Product Highlights:

Dual-Channel Recording

250m Wireless Transmission

Up to 14 Hours of Onboard Memory

Portable and Compact

Wide Compatibility

Up to 15 Hours of Battery Life

Product Features:

Dual-Channel Recording

DJI Mic comes with two transmitters, each with built-in microphones. Both transmitters support omnidirectional audio, making them ideal for multi-person interviews and small studio operations.

Built-in Touchscreen and Onboard Memory

The receiver's touchscreen display gives you easy access to channel selection, input/output settings, and other essential operations. Both transmitters come with 14 hours of built-in storage to prevent audio frame drop, loss, and other issues.

Wireless Transmission

Enjoy clear and reliable audio, even in complex scenarios. The transmitters and receiver communicate via powerful wireless transmission that keeps audio stable while reducing sound delay, even at long distances of up to 250m.

Wireless Convenience

The entire DJI Mic system is wirelessly connected via a stable 2.4GHz frequency band, which allows you to move with complete freedom as you record your adventure.

Powerful Anti-Interference

The optimized wireless transmission system ensures a stable stream of audio, even in areas such as train stations, shopping malls, and offices.

Clip On and Record

Each transmitter has a convenient back-clip that can be easily attached to clothes and other objects.

More Ways to Connect

When the clothes you're wearing aren't suitable for the back clip, the transmitters can also be attached via the clip magnets.

Easy To Mount

With the hot shoe adapter, attach the receiver to your DSLR camera, mirrorless camera, or smartphone bracket and capture flawless footage to match the audio.

Vastly Compatible

Different devices mean different input adapters, and DJI Mic covers them all. The receiver has USB-C, Lightning, and 3.5mm TRS ports, making it compatible with mainstream smartphones, cameras, and laptops.

DJI Mic Charging Case

The ultra-portable charging case is the perfect home for DJI Mic. With it, you can charge the transmitters and receiver, conveniently store components, and fast pair the system right out of the case.

Ultra-Long Battery Life

Looking for a system that can keep up with your content needs? Get a full day of audio recording with DJI Mic. Enjoy 5.5 hours of battery life from the transmitters, 5 hours from the receiver, and up to 15 hours with the charging case.

Product Specifications:

DJI Mic Transmitters

Model - AST01

Dimensions - 47.32×30.43×20.01 mm

Weight - 30 g

Wireless Mode - GFSK 1 Mbps and 2 Mbps

Equivalent Isotropic Radiated Power (EIRP) - <20 dBm

Operating Frequency - 2400-2483.5 MHz

Battery Type - LiPo 1S

Battery Capacity - 320 mAh

Battery Energy - 1.23 Wh

Battery Voltage - 3.85 V

Charging Temperature - 5 to 45°C (41° to 113° F)

Operating Temperature - -10° to 45°C (14° to 113° F)

Charging Time - 70 mins

Operating Time - 5.5 hours

DJI Mic Receiver

Model - ASR01

Dimensions - 47.44×32.21×17.35 mm

Weight - 24.9 g

Wireless Mode - GFSK 1 Mbps and 2 Mbps

Equivalent Isotropic Radiated Power (EIRP) - <20 dBm

Operating Frequency - 2400-2483.5 MHz

Battery Type - LiPo 1S

Battery Capacity - 320 mAh

Battery Energy - 1.23 Wh

Battery Voltage - 3.85 V

Charging Temperature - 5 to 45°C (41° to 113° F)

Operating Temperature - -10° to 45°C (14° to 113° F)

Charging Time - 70 mins

Operating Time - 5 hours

Charging Case

Model - ASB01

Dimensions - 103.06×61.87×41.50 mm

Weight - 162.2 g

Battery Type - LiPo 1S

Battery Capacity - 2600 mAh

Battery Energy - 10 Wh

Battery Voltage - 3.87 V

Charging Temperature - 5 to 45°C (41° to 113° F)

Operating Temperature - 5 to 45°C (41° to 113° F)

Charging Time - 2 hours and 40 mins

Operating Time - Fully charge three devices simultaneously for 1.8 times

General

Microphone Directions - All Directions

Frequency Response

Low Cut Off: 50 Hz - 20 kHz

Low Cut On: 150 Hz - 20 kHz

Max Sound Pressure Level (SPL) - 114 dB SPL

Max Input Level (3.5 mm) - -17 dBV (THD < 0.1%)

Equivalent Noise - 23 dBA

Monitor Interface Output Power - Max Output 22mW@1kHz, 32Ω
