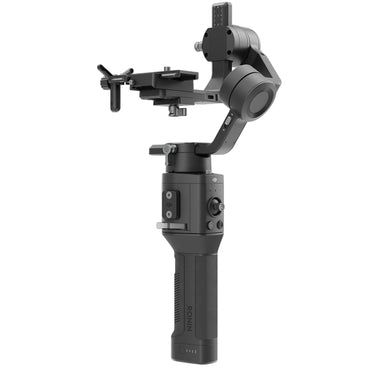

Lightweight & Compact
Opening possibilities for filmmakers and content creators in almost any situation, Ronin-SC was built to go anywhere. Magnesium and aluminum construction, along with high-strength composite materials provide robust performance at just 1.1 kg. With a modular, quick setup design, Ronin-SC can pack neatly in limited spaces and be carried with ease.
Greater Compatibility
Ronin-SC supports a wide range of cameras and lenses while meeting strict performance standards. It has been rigorously tested to support a payload of 2.0 kg while still achieving a smooth, cinematic shot. Intuitive and user-friendly controls for shutter and focus are also available for most camera brands.
Dynamic Stability
Even in action-packed scenes, Ronin-SC gives a perfectly stable shot. Sport mode improves the sensitivity of each axis while continuing to maintain stabilization, making Ronin-SC more effective in fast follows, sudden motions, and even complete changes in direction.

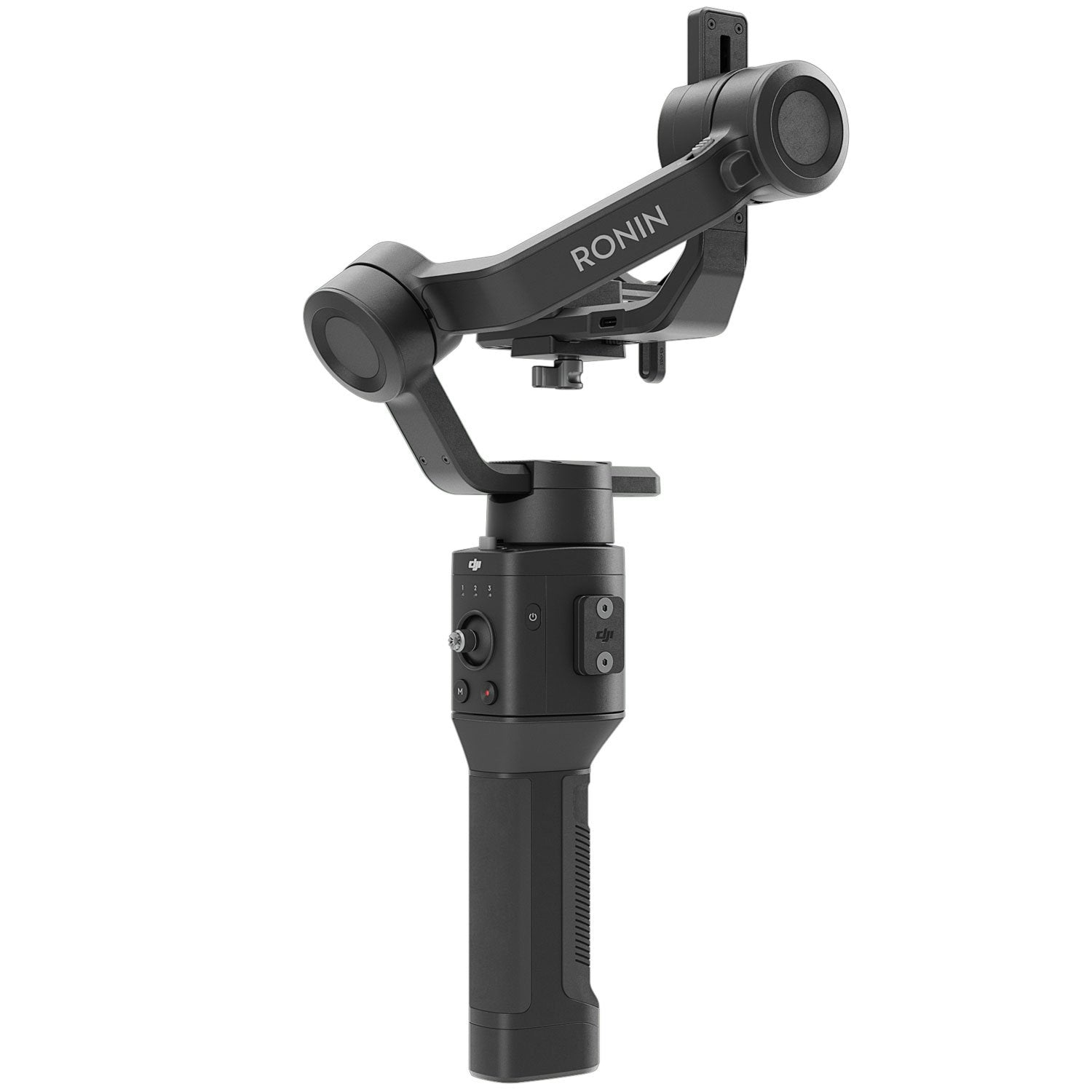

Unobstructed Roll Axis Arm
An innovative framework elevates camera payload above the roll axis, keeping the camera's built-in display free of obstruction. After DJI introduced this concept, it has been embraced throughout the handheld gimbal industry.
Unlimited Pan Axis
The pan axis allows for continuous movement, freeing the camera for more ambitious shots. Options like an infinite 360° roll allow filmmakers to achieve completely unique shots.
Show More
Lightweight & Compact
Opening possibilities for filmmakers and content creators in almost any situation, Ronin-SC was built to go anywhere. Magnesium and aluminum construction, along with high-strength composite materials provide robust performance at just 1.1 kg. With a modular, quick setup design, Ronin-SC can pack neatly in limited spaces and be carried with ease.
Greater Compatibility
Ronin-SC supports a wide range of cameras and lenses while meeting strict performance standards. It has been rigorously tested to support a payload of 2.0 kg while still achieving a smooth, cinematic shot. Intuitive and user-friendly controls for shutter and focus are also available for most camera brands.
Dynamic Stability
Even in action-packed scenes, Ronin-SC gives a perfectly stable shot. Sport mode improves the sensitivity of each axis while continuing to maintain stabilization, making Ronin-SC more effective in fast follows, sudden motions, and even complete changes in direction.
Unobstructed Roll Axis Arm
An innovative framework elevates camera payload above the roll axis, keeping the camera's built-in display free of obstruction. After DJI introduced this concept, it has been embraced throughout the handheld gimbal industry.
Unlimited Pan Axis
The pan axis allows for continuous movement, freeing the camera for more ambitious shots. Options like an infinite 360° roll allow filmmakers to achieve completely unique shots.
Down to Every Detail
The buttons and trigger are easy to reach for every essential control. A flared battery grip makes extended holding easier and slip-resistant, letting you capture moments throughout the day.
Automated Features
Ronin-SC offers a suite of advanced capturing features to unleash your imagination.
Panorama
Smooth, automated movement control allows you to create panoramas with unparalleled quality and precision.
Timelapse
Make the passage of time your ultimate storytelling tool, capturing sunsets and blossoming flowers in a steady frame.
Motionlapse
Smooth gimbal movement adds a compelling element to your timelapse.
Motion Control
Create a camera movement path to repeat the exact frame you want, whenever you need.
ActiveTrack 3.0
ActiveTrack technology arrives for the first time in the Ronin series. A smartphone mounted above the camera, the Ronin app, and Ronin-SC work together seamlessly to achieve smooth, precise gimbal movement at all times, allowing you to focus more on creating the shot that matches your vision.
Force Mobile
Ronin-SC introduces Force Mobile, an app-based version of the Force Pro camera movement control system. By tilting and rotating your smartphone, users can control the gimbal with ultra-low latency, delivering a fluid, expressive shot with an instinctive feel. [3]
Ronin App
The Ronin app has also been improved for an even better user experience making Ronin-SC professional and easy to use. The layout has been refined to offer quicker access to preset scenarios, and we’ve also included a camera balancing guide, along with tutorials to help users master their handheld gimbal. The app also minimizes hardware tuning, setting filmmakers free to produce great footage.
Simple Setup with Safety Features
Axis locks on each arm allow for faster storage and individual axis balancing. The Quick-Release Plate includes a positioning block to memorize the perfect camera position for instant remounting. When powering off, the motors gradually power down the gimbal, ensuring reliability and quick setup wherever your shot takes you.

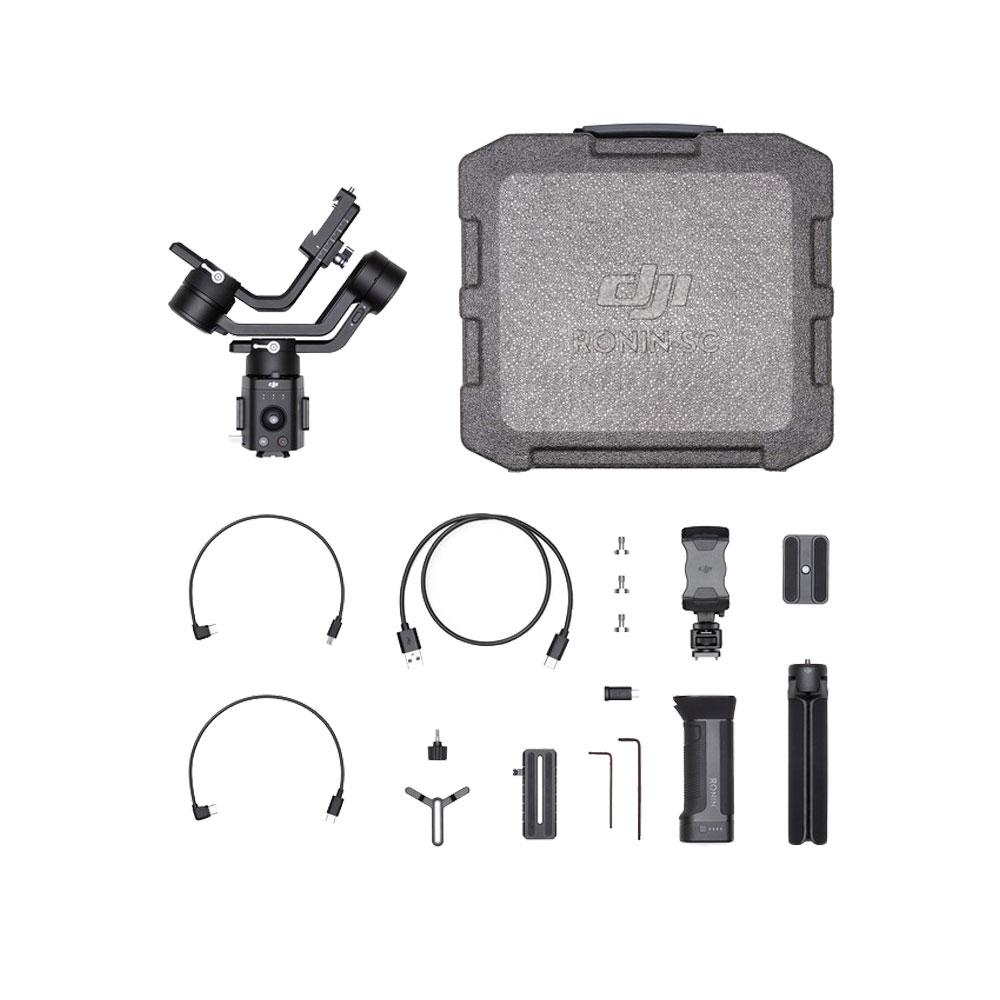

An Ecosystem of Accessories
An ever-growing list of powerful accessories empowers Ronin-SC to push boundaries further and gives filmmakers the tools for endless imagination.

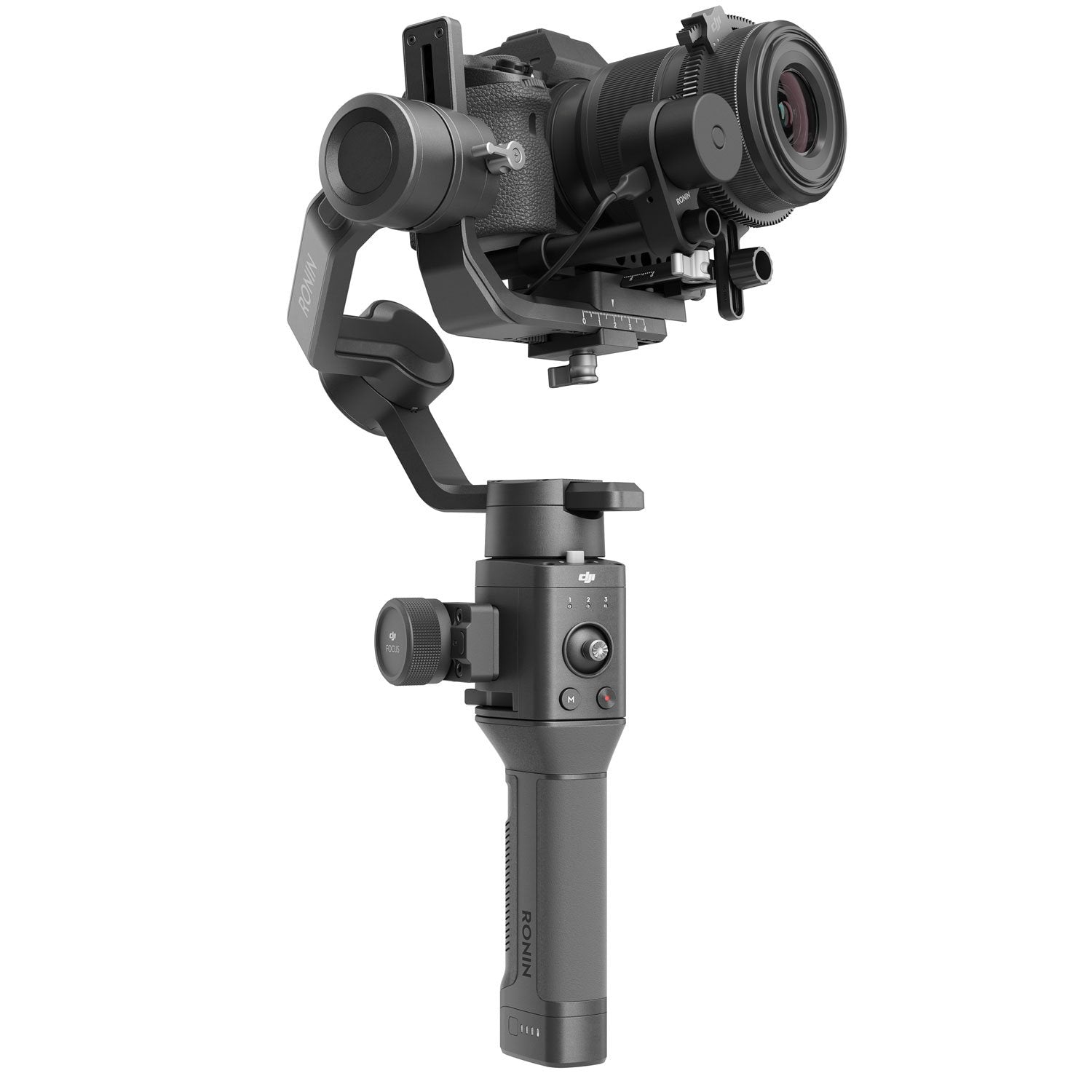

Focus Motor
Works with the Focus Wheel to control camera focus.
Focus Wheel
Delivers precise, smooth focus control with a detachable mounting design.
Command Unit
Adjusts motor settings, switches operation modes, and selects remote control settings via the screen and 5D button.

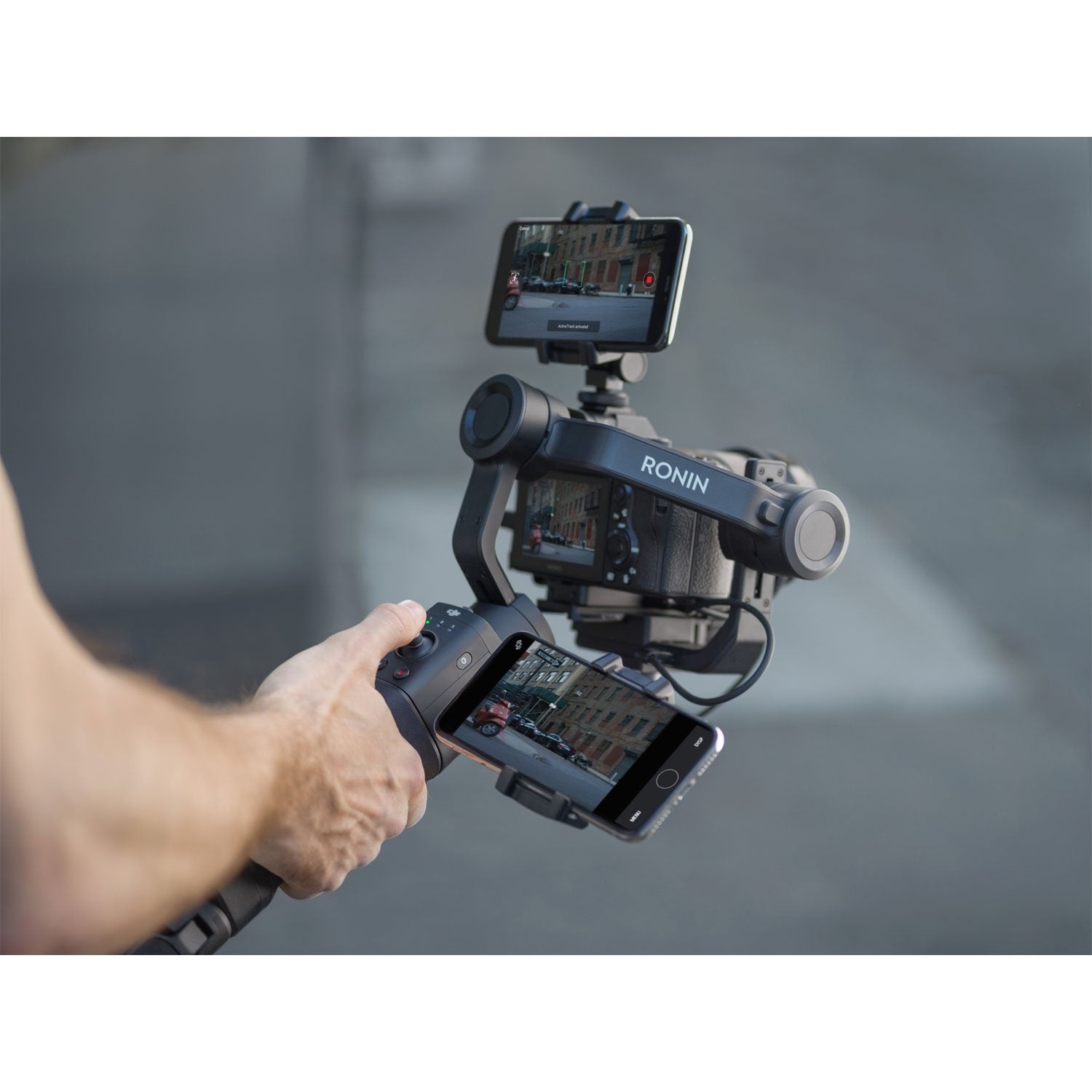

Phone Holder
Mounts your smartphone above the camera to use ActiveTrack, or along the side of the handle to act as a monitor. [4]
Cheese Plate
Equipped with 1/4"-20 tapped holes for mounting extra accessories.
BG18 Grip
Provides up to 11 hours of operation, with a flared grip for a reliable hold.
1. When the gimbal is folded and not connected to the BG18 Grip.
2. Depending on actual payloads mounted to the gimbal, counterweights for balancing may be required.
3. Force Mobile is currently only available for iOS.
4. Monitor function only available for cameras with built-in Wi-Fi transmission.
Peripheral
Accessory Connections: 1/4” Mounting Hole, 3/8” Mounting Hole, Camera Control Port, Accessory Port, USB-C Port, RSA Accessory Expansion Port
Intelligent Battery: Model: RB2-2450mAh-7.2V | Type: 18650 LiPo | Capacity: 2450 mAh | Power: 17.64 Wh | Max. Battery Life: 11 h | Charging Time: 2.5 h (5 V/2 A) | Charging Temperature: 5° to 40°C (41° to 104°F)
Connections: Bluetooth 5.0; USB-C
Mobile Assistant Software Requirements: iOS 9 or above; Android 5.0 or above
Working Performance
Tested Payload: ≤ 2.0 kg
Angular Vibration Range: ±0.02°
Maximum Controlled Rotation Speed: Pan axis control: 180°/s | Tilt axis control: 180°/s | Roll axis control: 180°/s
Mechanical Endpoint Range: Pan axis control: 360° continuous rotation | Tilt axis control: -95° to +220° | Roll axis control: -202.5° to +112.5°
Controlled Rotation Range: Pan axis control: 360° continuous rotation | Tilt axis control: -90° to 145° | Roll axis control: ±30°
Mechanical & Electrical Characteristics
Working Current Static current: 0.2 A
Working Frequency: 2.400 GHz to 2.4835 GHz
Transmission Power: ≤ 8 dBm
Operating Temperature: -20° to 45°C (-4° to 113°F)
Weight: Gimbal: Approx. 830 g | BG18 Grip: Approx. 258 g | Tripod: Approx. 160 g
Gimbal Dimensions: Folded: 220×200×75 mm | Unfolded: 370×165×150 mm
What’s the difference between Ronin-SC and Ronin-S?
Ronin-SC is built for digital interchangeable-lens cameras, while Ronin-S is a professional handheld stabilizer designed for large and heavy cameras such as DSLRs and mirrorless cameras. Compared to Ronin-S, Ronin-SC is lighter, easier to carry, and more flexible when moving quickly while filming. In addition, a wide range of auxiliary shooting functions and hardware designs have been optimized for better performance.
How do I upgrade the firmware for Ronin-SC?
You can upgrade the firmware for Ronin-SC through the Ronin app. Users do not need to connect their Ronin-SC to a computer.
What versions of Ronin-SC are available?
Ronin-SC comes in two versions: Ronin-SC standard and Ronin-SC Pro Combo.
What cameras are compatible with Ronin-SC?
Refer to the Ronin-SC Camera Compatibility List for more information on camera compatibility.
Is Ronin-SC built with a Wi-Fi video transmission system?
No.
How are the axis locks on Ronin-SC axes used?
You can use the axis locks when transporting Ronin-SC while it is folded or when trying to balance the gimbal.
What is the purpose of the slider on the quick-release plate?
The slider is used to help establish the perfect balancing position for your camera. It also helps secure the balancing position of the tilt axis.
What can I do to prevent Ronin-SC from becoming unbalanced and the camera potentially falling off after filming for an extended period?
Enable the Balancing Test feature in the Ronin app to ensure your camera is always balanced.
What is the optimal payload that should be mounted to Ronin-SC?
As tested, Ronin-SC performs the best when mounted with a payload of 2.0 kg or less.
How good is the stabilization of Ronin-SC?
The stabilization of Ronin-SC has passed rigorous testing to meet DJI’s standards. For more information, you can refer to the Ronin-SC Stabilization Technical Standards guide.
What is the battery life of Ronin-SC?
Ronin-SC can be used up to 11 hours when the battery is fully charged and the gimbal is well balanced.
What is Sport Mode, and how can I enable it?
In Sport mode, the gimbal follows your movements more quickly and efficiently, which is perfect for shooting fast-moving objects. To enable Sport mode, press and hold the M button and wait until the LED indicator turns yellow. You can lock the gimbal in Sport mode by pressing and holding the M button, then double tapping the trigger.
What is Auto Calibration?
When Auto Calibration is enabled, the gimbal will automatically set an appropriate motor stiffness value based on the weight of the mounted payload. After finishing mounting a camera and balancing the gimbal, it is recommended that you enable Auto Calibration before filming.
What is Deadband?
Deadband helps regulate gimbal movement. Having a large value means that the movement range neglected by the gimbal will also be large.
How do I manually adjust the gimbal direction?
You can manually adjust the gimbal direction by selecting User Profile in the Ronin app and enabling Push Pan.
How do I rotate the gimbal 360° while filming?
By selecting User Profile in the Ronin app and enabling 3D Roll 360.
How do I quickly switch between different shooting parameters?
You can preset three groups of parameters for Ronin-SC and adjust them in the User Profile section of the Ronin app. By pressing the M button, you can switch between these three groups of parameters while filming.
What is System Calibration? In what situation do I need to perform a System Calibration?
Ronin-SC stabilization may be affected when filming in extreme environments. By performing a System Calibration, you can reset parameters and reduce operational errors to ensure Ronin-SC is performing at its best. Place the gimbal on a level surface before beginning System Calibration.
How do I access Pan & Till Follow, Pan Follow, FPV, and 3D Roll 360?
Launch the Ronin app, tap User Profile, and you can set gimbal parameters and choose different follow modes. In Full Follow mode, the pan and tilt axes will follow your movements, while in Pan Follow mode, only the pan axis will follow your movements. In FPV mode, the pan, tilt, and roll axes will follow your movements. In 3D Roll 360 mode, the gimbal will automatically enter Flashlight mode, allowing you to rotate it 360°.
What is ActiveTrack 3.0?
ActiveTrack 3.0 is an automatic tracking function that incorporates DJI’s optimized deep learning algorithms. After launching the Ronin app and selecting ActiveTrack 3.0, the gimbal will automatically recognize faces and track objects. You can also manually choose an object for the gimbal to follow, which is perfect for filming in complex environments.
What does ActiveTrack 3.0 feature?
ActiveTrack 3.0 stabilizes your composition during tracking while also allowing you to adjust movements with the gimbal joystick. In addition, when focusing on the head and shoulders of a subject, ActiveTrack 3.0 achieves a higher success rate of tracking.
How do I use ActiveTrack 3.0?
Attach your phone to the top of the camera’s hot shoe. Select Create in the Ronin app and then enable ActiveTrack 3.0. Afterward, choose a target and tap the Trigger to start tracking.
What if ActiveTrack 3.0 fails to work?
Currently, ActiveTrack 3.0 is only available on certain mobile devices. You can check the ActiveTrack 3.0 Phone Compatibility List to learn about compatible mobile devices.
What is Force Mobile?
By enabling Force Mobile, you can use your mobile device to control gimbal movements. Currently, this function is only available on iOS mobile devices.
What is the maximum control distance that Force Mobile supports?
Approximately 20 meters.
What accessories does Ronin-SC have?
You can learn about all Ronin-SC accessories at the DJI Online Store.
Is the Ronin-S Focus Motor compatible with Ronin-SC?
No. Only the Ronin-SC Focus Motor is compatible with Ronin-SC.
How do I use the Phone Holder?
By attaching your phone to the top of the camera’s hot shoe or at the side of the gimbal with the phone holder, you can use your phone as a live view monitor via the camera’s Wi-Fi video transmission. You can also use the Force Mobile feature by attaching your phone to the tripod.
Is the Ronin-S Camera Quick-Release Plate compatible with Ronin-SC?
No. Additionally, the Ronin-SC Camera Quick-Release Plate is not compatible with Ronin-S.
