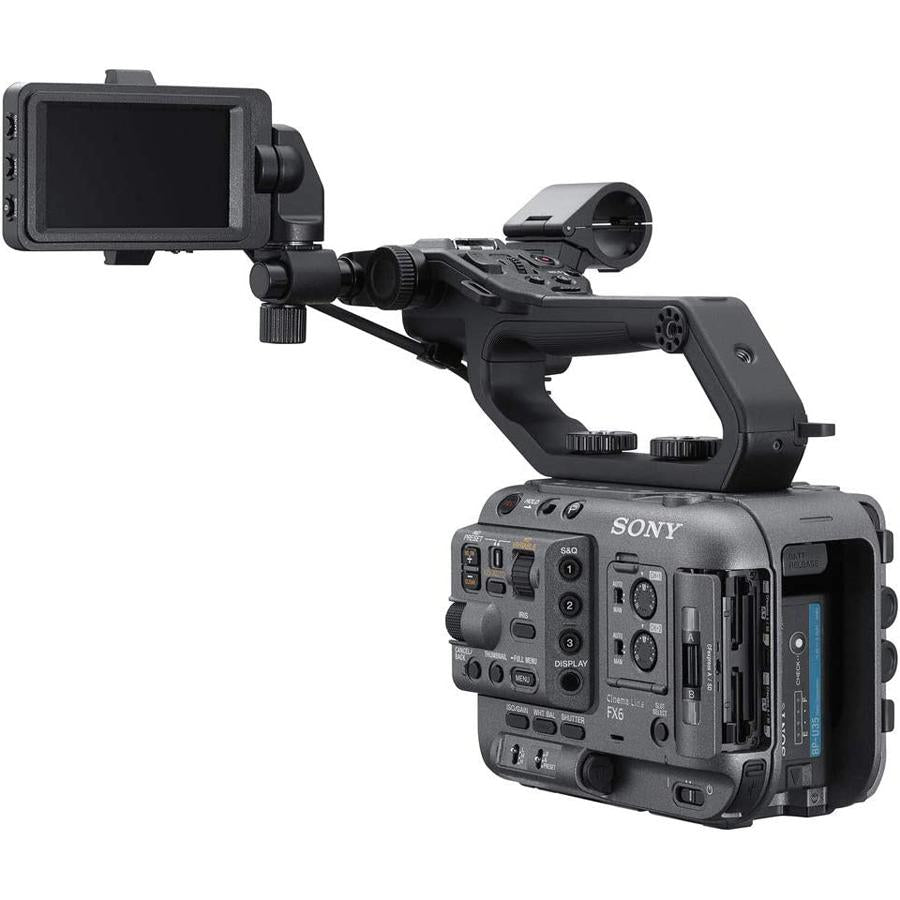

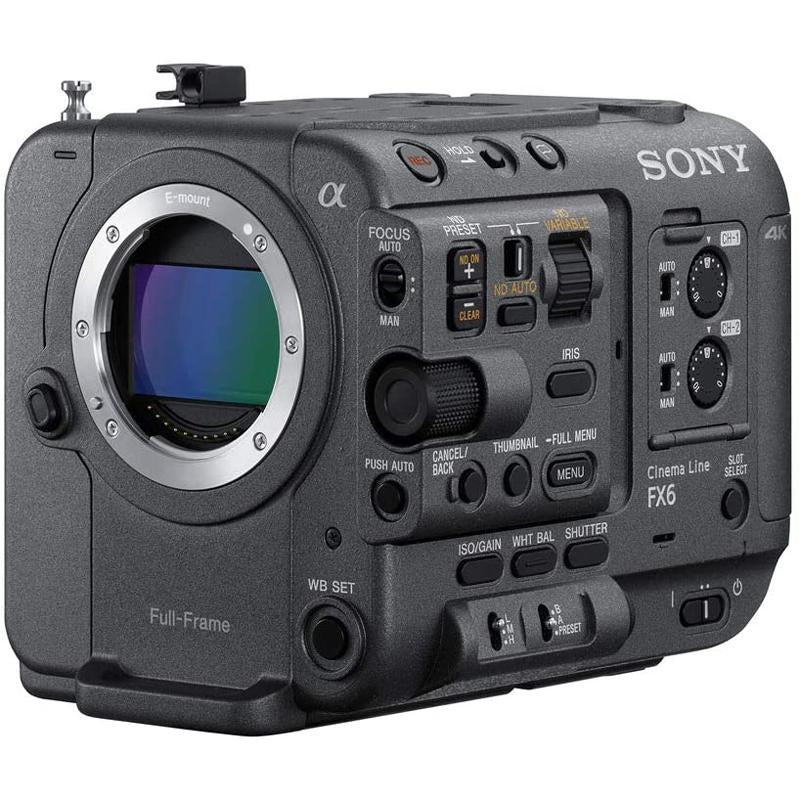

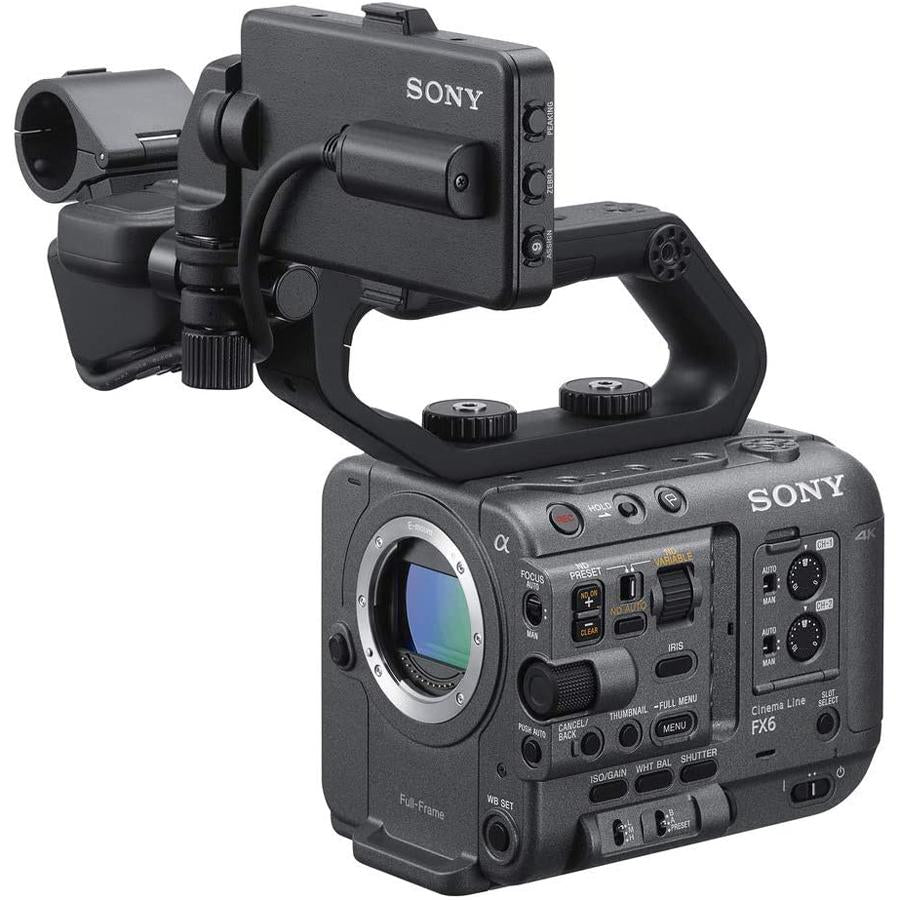

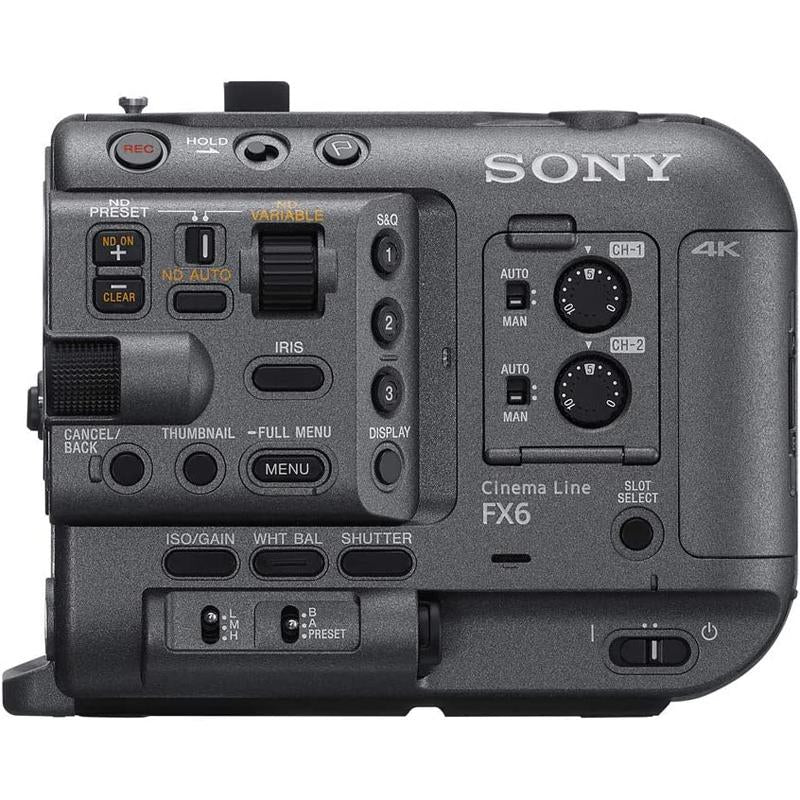

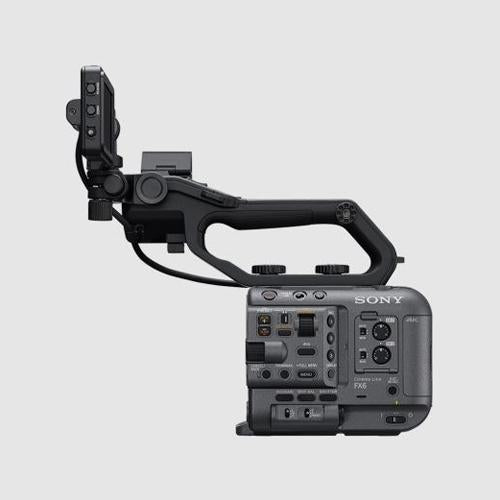

Sony Cinema Line FX6 Camera (ILME-FX6V)

Compact full-frame camera, with mobility and operability for solo shooting

The FX6 delivers compactness and performance, with a full-frame image sensor and Sony's renowned high sensitivity. Leading-edge movie functions deliver stunning AF performance with face and eye detection, and a library of preset looks allows stunning cinematic expression to be achieved easily and flexibly.

Product Highlights:

Product currently not available on consumer site, for more information please visit Pro site

4K full-frame sensor w/ 15+ stop dynamic range and high sensitivity

Fast Hybrid AF w/ 627 phase-detection AF points and Eye-AF tracking

Up to 4:2:2 10-bit QFHD 4K 120p, DCI 4K up to 60p and FHD 240p

Electronically controlled optical variable ND filter (1/4 to 1/128)

Selectable 12G/6G/3G SDI for up to 16-bit RAW 4K 60p output

Product Features:

Ready to tell amazing stories

Inside a compact body that's ready for grab-and-shoot action, the FX6 packs a highly sensitive, full-frame image sensor with the power to expand your moviemaking creativity.

Capture the impossible with expanded ISO sensitivity

Capture usable images in near total darkness with an impressive ISO expanded range up to 409600. The full-frame sensor coupled with innovative light gathering ensures limitless shooting possibilities.

Stunning bokeh and full-frame creativity

Realize beautiful 4K imagery with the creative freedom made possible by a full-frame sensor. Capture every detail from the scene with shallow depth of field and stunning bokeh for a truly cinematic look.

Cinematic color science with S-Cinetone™

S-Cinetone color, developed for Sony's acclaimed FX9, is the default look on the FX6. Precisely tuned to meet the requirements of today's content creators with rich color and natural skin tones, it produces fresh and vivid images straight out of camera without grading, while retaining plenty of latitude for post production.

Large pixels deliver high sensitivity and low noise

The full-frame, back-illuminated, 10.2-megapixel3 Exmor R™ CMOS image sensor offers impressive light-gathering capability. Fast readout speeds and a dynamic range of 15+ stops deliver superb image quality with wide sensitivity and reduced noise.

Powerful BIONZ XRTM image processor

The BIONZ XR image processing engine matches the sensor's high-speed readout with enormous processing power. Built with a future-oriented architecture, it delivers high-quality images faster and dramatically improves camera interface responsiveness.

Impressive dynamic range for limitless expression

At its base sensitivity of ISO 800 the FX6 offers optimal dynamic range for well-lit interiors and outdoor documentary shooting. An enhanced ISO 12800 sensitivity is designed for challenging low-light, morning and evening shots. The FX6 offers an exceptional 15+ stops of dynamic range—beyond the perception of even the human eye in many conditions—allowing for unprecedented creative freedom in color grading and post.

Fast Hybrid AF for accuracy and tenacity

The wide-area AF uses intelligent tracking and on-sensor phase-detection for tenacious subject tracking across almost the entire frame (6275-point focal plane phase-detection AF covers approx. 89% of the image area). The hybrid AF system delivers precise focusing even when shooting at shallow depths of field and at 120p high frame rates in 4K (QFHD).

Real-time Eye AF and Face Detection supported

Real-time Eye AF and Face Detection ensure accurate, stable focus acquisition for interviews, events, and anywhere where precise focus on people is essential. Sophisticated real-time processing realizes pinpoint eye focus even when subjects are looking down or up at steep angles, allowing the operator to concentrate fully on composing the best shot.

Powerful focus control for solo shooters

With AF Transition Speed selectable over 7 levels, and AF Subject Shift Sensitivity over 5 levels, you can better convey your creative intentions when switching subjects or, for example, rack focusing.

Lens-ring AF subject selection

When the AF Assist function is ON, rotating the focus ring instantly switches from autofocus to manual focus so that a different subject can be quickly selected. Autofocus operation resumes as soon as the user stops rotating the lens focus ring.

Autofocus area/position

For autofocus, you can set the target area among Flexible Spot, Zone, Wide and change the position of the target area quickly during shooting by simply touching the LCD monitor.

4K 120fps with every frame in focus

High Frame Rate shots can turn everyday action into a visual feast of elegant movement. The FX6 captures up to 120 frames per second (fps) at the 4K (QFHD) resolution. Slow and Quick (S&Q) modes give you full control over the captured frame rate from 1 to 120fps, allowing precise motion narratives, and up to a beautiful 5x Super Slow Motion (24fps output).

Autofocus with Sony E-mount lenses

Experience smooth, responsive autofocus with Sony E-mount lenses, with premium optical performance and operability for demanding cinematography applications. Unique actuator technology in Sony E-mount lenses provides faster and more precise AF performance, supporting your creative endeavors.

Built-in electronic Variable ND Filter

The FX6 features Sony's unique built-in electronic Variable Neutral Density (ND) filter. Unlike conventional optical ND Filters, the electronic ND Filter on the FX6 can be controlled from 1/4 ND to 1/128 ND linearly, or set to auto. Ideal in changeable environments, there's no need to change filters as lighting conditions change or to maintain your depth of field.

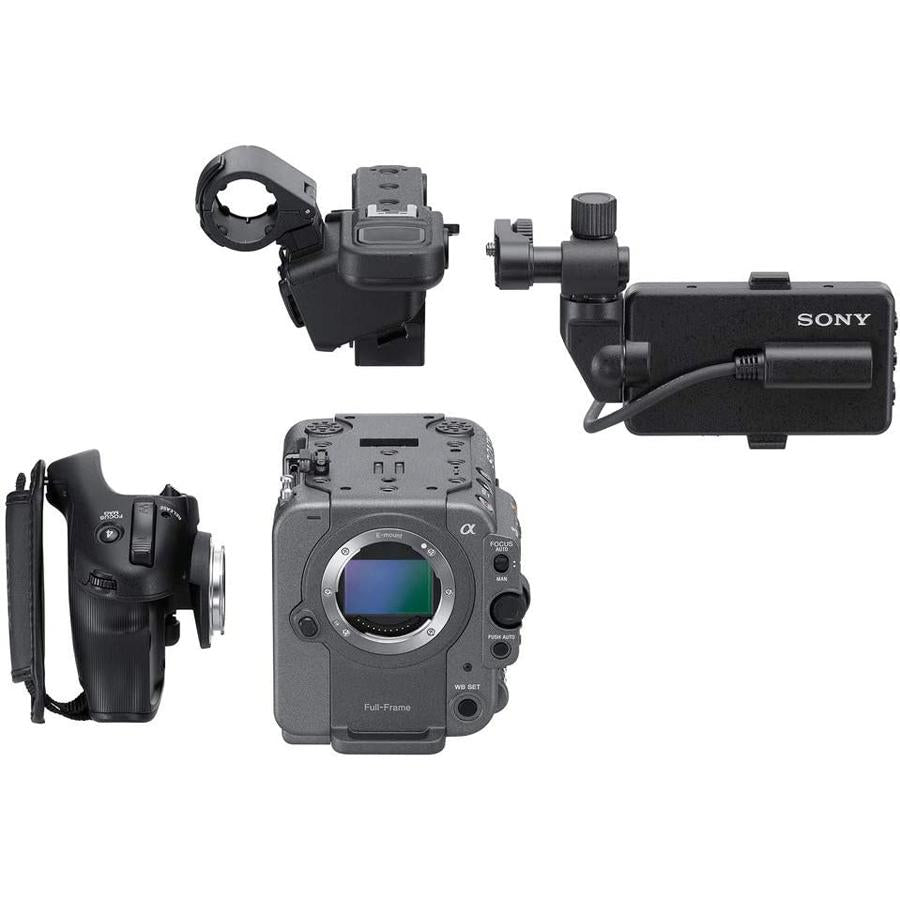

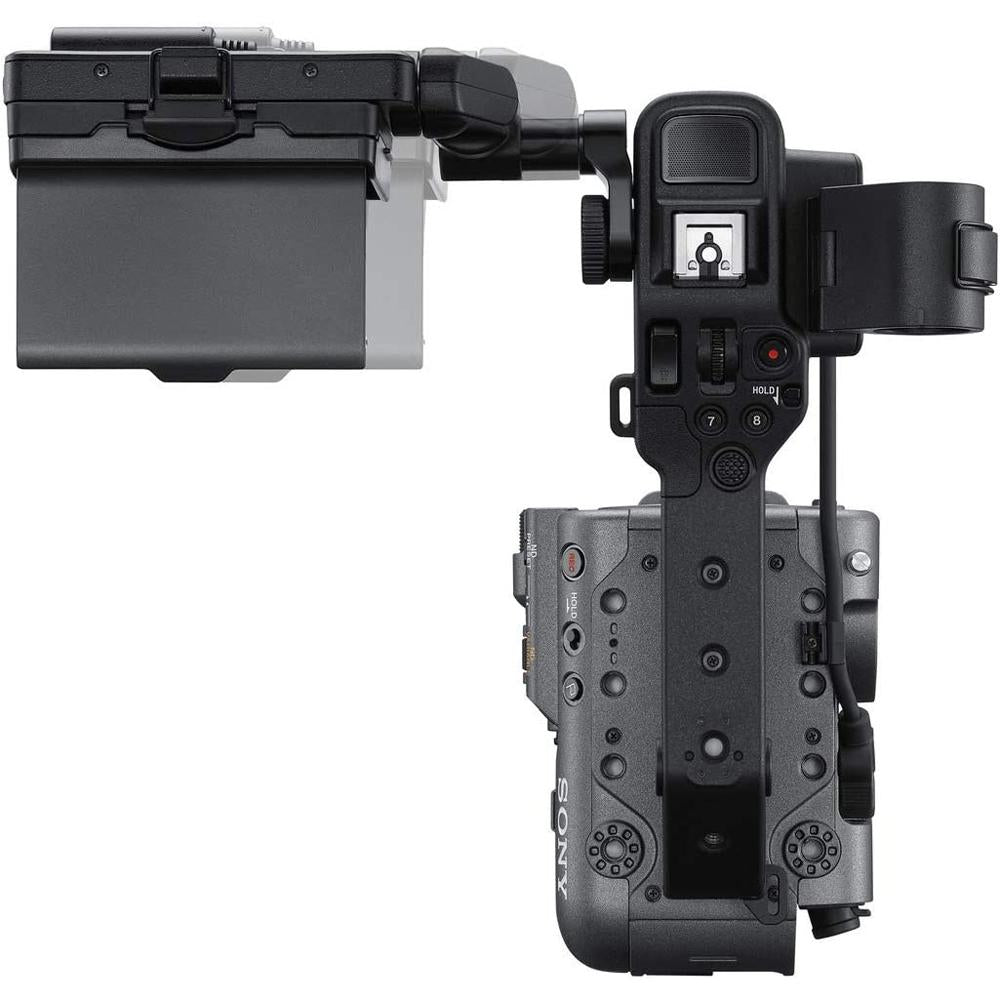

Lightweight, modular and robust

Despite its amazingly light 1.96-lb (0.89-kg) body, the magnesium-alloy FX6 is more than tough enough for the rigors of real-world shooting. A detachable Smart Grip puts key functions at your fingertips and is easily adjustable with a single button.

Grab and shoot mobility

Ideal for low-angle shooting, the smart handle is part of the FX6's modular design. It's easy to reconfigure for any application, including mounting in a gimbal, drone or underwater housing.

Magnesium body and frame for high durability with light weight

To perform reliably in challenging environments, the main body, covers and top handle are made from a production-tested, lightweight magnesium alloy. The main frame achieves high strength and durability with minimum weight in order to maximize mobility.

Architecture to prevent thermal shut down

The custom ventilation system and chassis design help to prevent the thermal shut down of shooting8 at high frame rates and 4K (QFHD) resolutions. The number of heat sinks, the shape of air intakes and exhaust vents as well as the location of the low-noise fan, and airflow paths have all been calculated with precision to ensure that optimum ventilation is achieved.

10-bit 4:2:2 recording

Record right on the camera with the amazing richness of 10-bit depth and 4:2:2 color sampling, for far greater flexibility in image grading, post-processing and compositing.

All-Intra encoding available

As well as Long GOP, internal All-Intra encoding is now provided. This encodes every frame independently at bitrates up to 600 Mbps, to capture complex motion more accurately, and allow more efficient editing workflows.

16-bit RAW SDI output

For demanding post-production workflows, 16-bit RAW output is available via SDI connection to compatible external recorders while XAVC-I files are simultaneously captured in-camera. RAW video output is 4096 x 2160 or 3840 x 2160 data from the image sensor with a choice of 59.94/50/29.97/25/24/23.98 frame rates.

Shooting modes that match creator workflows

The FX6 offers shooting modes with preset looks like S-Cinetone that produce great-looking shots in-camera, or S-Log / S-Gamut with Cine-EI mode that capture perfectly exposed images for post production.

Scene File function allows easy look changes on-site

Four preset scene file types are available for SDR shooting (S-Cinetone, Standard, Still, ITU709) and two for HDR (HLG Live, HLG Natural) plus 16 slots for imported user 3D LUTs for your preferred look without post production.

Remarkable smart grip and smart handle

ony's ergonomic Smart Grip and Smart Handle feature easy one-button adjustment. With zoom, record and assignable control buttons, as well as a dial suitable for iris control, you can comfortably operate for hours.

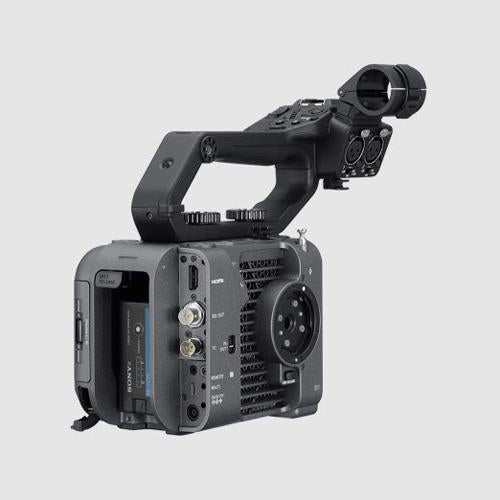

Professional connectivity

A wide range of professional interfaces is available including 12G-SDI and HDMI outputs11, a remote interface, TC connectors for multi-camera sync and SuperSpeed USB 5 Gbps (USB 3.2) to support fluid data workflows.

Multi-Interface (MI) Shoe

Sony's Multi-Interface (MI) Shoe provides power, signal and switching connections to compatible Sony accessories, including wireless microphone systems such as the UWP-D21 or UWI-D2212.

Support for four-channel audio input and recording

Four-channel audio input allows simultaneous capture of external microphones and the built-in microphone. UWP wireless microphones or XLR audio adaptors such as the XLR-K3M can also be used with the MI Shoe.

Dual XLR inputs and enhanced audio capability

The handle of the FX6 has two independent audio inputs, easy-access XLR connectors to connect external professional microphones. UWP series wireless microphones may also be connected via the MI Shoe.

High-definition 2.76 million-dot flexible LCD panel

The 3.5-inch LCD screen allows precise manual focusing in challenging shooting conditions. Flexible positioning of both mounting locations and angles allows comfortable shooting to suit varied preferences and rigging.

Quick menu control with touch operation

The LCD screen has a quick access control menu. With a single touch, you can change codec, imager scan mode, picture size and frequency, base ISO/sensitivity, shooting mode and audio levels.

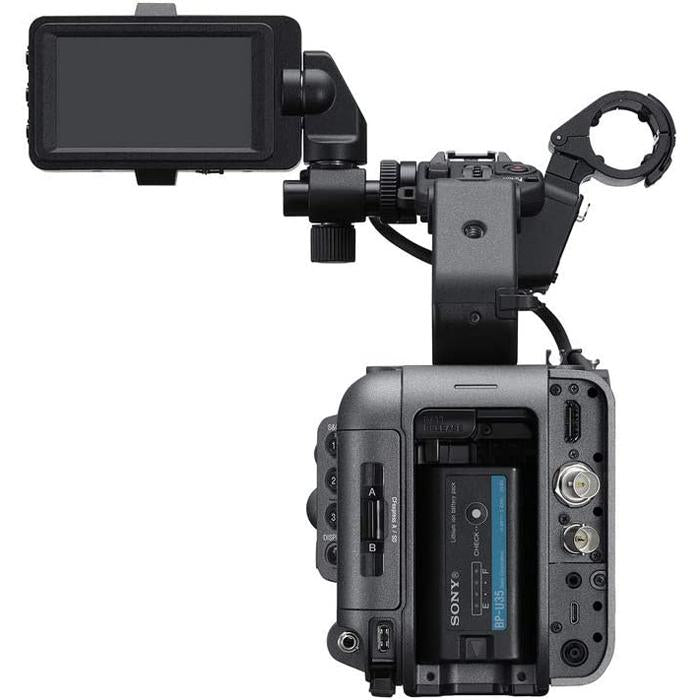

Dual CFexpress Type A-compatible media slots

Dual media slots support CFexpress Type A cards, along with conventional SDXC UHS-I and UHS-II cards, for fast buffer clearance and data management. Simultaneous, relay, interval and proxy modes are supported.

Networked for high mobility

Wi-Fi connectivity enables a host of advanced wireless production features such as remote control via smartphones or tablets and the Content Browser Mobile app. Connect easily with either One-touch NFC or manual pairing.

Metadata facilitates editing in Catalyst

The FX6 records three types of metadata: image stabilization, clip flag and camera rotation. These can be useful when previewing and preparing to edit in Sony's free Catalyst Browse or cost-effective Catalyst Prepare software.

Product Specifications:

Built-in Microphone

BUILT-IN MICROPHONE - Omnidirectional monaural electret condenser microphone (body) (x1) Stereo electret condenser microphone (handle) (x1)

Camera Section

PIXELS - Approx. 12.9 megapixels (total), Approx. 10.2 megapixels (effective)

SENSITIVITY - ISO 800/12800 (Cine EI mode, D55 Light source)

SENSOR TYPE - 35 mm full-frame, single-chip CMOS image sensor

SHUTTER SPEED - 64F to 1/8000 s

BUILT-IN OPTICAL FILTERS - Clear, linear variable ND (1/4ND to 1/128ND)

Exposure

GAIN CONTROL - –3 to 30 dB (every 1 dB), AGC

Gamma

GAMMA CURVE - SDR mode: S-Cinetone, Standard, Still, ITU709, HDR mode: HLG_Live, HLG_Natural

Latitude

LATITUDE - 15+ stop

Media

MEDIA TYPE - CF express Type A / SD card (x2) Slot B can be used for saving configuration data.

Monitoring

LCD - 3.46 " (3.5 type) Approx. 2.76M dots

Operation

OPERATING TEMPERATURE - 32 °F to 104 °F (0 °C to 40 °C)

STORAGE TEMPERATURE - –4 °F to +140 °F (–20 °C to +60 °C)

Power

POWER CONSUMPTION - Approx. 18.0 W (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device)

POWER REQUIREMENT - DC 19.5 V

BATTERY OPERATING TIME - Approx. 105 min. with BP-U35 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device) Approx. 215 min. with BP-U70 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device)

Recording Format (Audio)

RECORDING FORMAT (AUDIO) - LPCM 24 bits, 48 kHz, 4 channels

Recording/ Playback Time

PROXY VIDEO - XAVC Proxy: AVC/H.264 High Profile 4:2:0 Long GOP, VBR 1920 x 1080, 9 Mbps

PROXY AUDIO - XAVC Proxy: AAC-LC, 128 kbps, 2 channels

XAVC INTRA - XAVC-I DCI4K/QFHD 59.94p When using CEA-G160T (160 GB): Approx. 30 minutes When using CEA-G80T (80 GB): Approx. 15 minutes XAVC-I DCI4K/QFHD 50p When using CEA-G160T (160 GB): Approx. 36 minutes When using CEA-G80T (80 GB): Approx. 17 minutes XAVC-I DCI4K/QFHD 29.97p When using CEA-G160T (160 GB): Approx. 60 minutes When using CEA-G80T (80 GB): Approx. 29 minutes XAVC-I DCI4K/QFHD 25p When using CEA-G160T (160 GB): Approx. 71 minutes When using CEA-G80T (80 GB): Approx. 35 minutes XAVC-I DCI4K 24p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB): Approx. 36 minutes XAVC-I DCI4K/QFHD 23.98p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB): Approx. 36 minutes XAVC-I HD 59.94p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB): Approx. 38 minutes XAVC-I HD 50p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB): Approx. 38 minutes XAVC-I HD 29.97p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB): Approx. 74 minutes XAVC-I HD 25p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB): Approx. 74 minutes XAVC-I HD 23.98p When using CEA-G160T (160 GB): Approx. 185 minutes When using CEA-G80T (80 GB): Approx. 91 minutes

XAVC LONG - XAVC-L QFHD 29.97p/25p/23.98p When using CEA-G160T (160 GB): Approx. 170 minutes When using CEA-G80T (80 GB): Approx. 86 minutes XAVC-L QFHD 59.94p/50p When using CEA-G160T (160 GB): Approx. 115 minutes When using CEA-G80T (80 GB): Approx. 57 minutes XAVC-L HD 50 /29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 320 minutes When using CEA-G80T (80 GB): Approx. 155 minutes XAVC-L HD 35 29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 430 minutes When using CEA-G80T (80 GB): Approx. 210 minutes

Size & Weight

WEIGHT (MAIN UNIT ONLY) - Approx. 1 lb 15 oz (890 g)

DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) - 4.49 x 4.57 x 6.02 " (114 x 116 x 153 mm) (body without protrusions)

DIMENSIONS (W X H X D) (INCLUDING SUPPLIED ACCESSORIES) - Approx. 5 lb 11 oz (2.59 kg) (with Viewfinder, Grip Remote Control, BP-U35 battery, SEL24105G LENS, Lens Hood, Handle, MIC holder)

Wi-Fi/NFC

FREQUENCY BAND - 2.4 GHz bandwidth 5.2/5.3/5.6/5.8 GHz bandwidth

NFC - NFC Forum Type 3 Tag-compliant

SECURITY - WEP/WPA-PSK/WPA2-PSK

SUPPORTED FORMAT - IEEE 802.11 a/b/g/n/ac

White Balance

WHITE-BALANCE MODES - Preset, Memory A, Memory B (2000K–15000K)/ATW

Recording Format (Video)

XAVC INTRA - XAVC-I DCI4K 59.94p mode: VBR, MAX bitrate 600 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 50p mode: VBR, MAX bitrate 500 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 29.97p mode: VBR, MAX bitrate 300 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 25p mode: VBR, MAX bitrate 250 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 24p mode: VBR, MAX bitrate 240 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 23.98p mode: VBR, MAX bitrate 240 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 59.94p mode: VBR, MAX bitrate 600 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 50p mode: VBR, MAX bitrate 500 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 29.97p mode: VBR, MAX bitrate 300 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 25p mode: VBR, MAX bitrate 250 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 23.98p mode: VBR, MAX bitrate 240 Mbps, MPEG-4 AVC/H.264 XAVC-I HD 59.94p mode: CBG, MAX bitrate 222 Mbps, MPEG-4 AVC/H.264 XAVC-I HD 50p mode: CBG, MAX bitrate 223 Mbps, MPEG-4 AVC/H.264 XAVC-I HD 29.97p mode: CBG, MAX bitrate 111 Mbps, MPEG-4 AVC/H.264 XAVC-I HD 25p mode: CBG, MAX bitrate 112 Mbps, MPEG-4 AVC/H.264 XAVC-I HD 23.98p mode: CBG, MAX bitrate 89 Mbps, MPEG-4 AVC/H.264

XAVC LONG - XAVC-L QFHD 29.97p/25p/23.98p mode: VBR, MAX bitrate 100 Mbps, MPEG-4 H.264/AVC XAVC-L QFHD 59.94p/50p mode: VBR, MAX bitrate 150 Mbps, MPEG-4 H.264/AVC XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode: VBR, MAX bitrate 50 Mbps, MPEG-4 H.264/AVC XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode: VBR, MAX bitrate 35 Mbps, MPEG-4 H.264/AVC

Recording Frame Rate

XAVC INTRA - XAVC-I DCI4K mode: 4096 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P, 24P XAVC-I QFHD mode: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P XAVC-I HD mode: 1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P

XAVC LONG - XAVC-L QFHD mode: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P XAVC-L HD 50 mode: 1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P XAVC-L HD 35 mode: 1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P

Slow & Quick Motion

XAVC-I - 4096 x 2160 1 to 60 frames (59.94/50/29.97/25/24/23.98)

XAVC-I/L - 3840 x 2160; 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98); 1920 x 1080; 1 to 60, 100, 120, 150, 180, 200, 240 frames (59.94/50/29.97/25/23.98)

Interface

AUDIO INPUT - XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable Mic Reference: –30 to –80 dBu

HDMI OUTPUT - Type A (x1)

HEADPHONE OUTPUT - Stereo mini jack (x1) –16 dBu 16 Ω

SPEAKER OUTPUT - Monaural

USB - USB Type-C™ (x1), Multi/Micro-B (x1)

DC INPUT - DC jack

GRIP - Minijack (Φ 0.14 " / 4-pin)

REMOTE - Stereo mini-minijack (Φ 0.01 ")

SDI OUTPUT - SDI OUT: BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A/B)

TC INPUT/TC OUTPUT - BNC, TC IN/OUT Switchable

Supplied Accessories

SUPPLIED ACCESSORIES - Handle (1) LCD monitor (1) Grip remote control (1) AC Adapter (1) Power cord (1) Battery charger (1) Battery pack (1) USB-C cable (1) Liquid Crystal Display hood (1) Cold shoe kit (1) Lens mount cap (1) Handle connector cap (1) Before Using This Unit (1) Warranty booklet (1)

Lens

LENS MOUNT - E-mount
